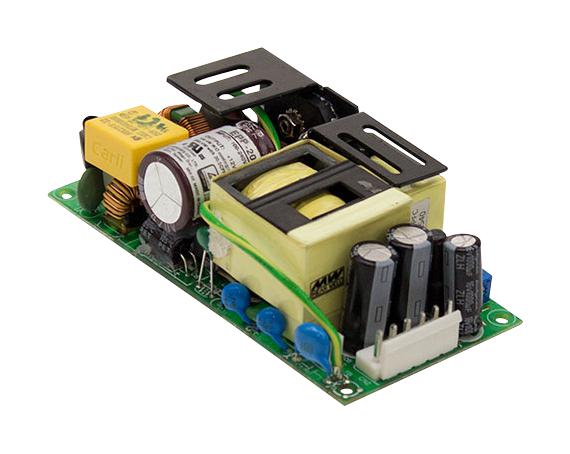

MEAN WELL EPP20024 industrial power supply
EPP-200 series is a compact, high-efficiency 200W power supply with active PFC, suitable for industrial automation, control systems, and electronic instrumentation. It offers universal AC input, operates from 80 to 264VAC, and provides output voltages between 12V and 48V with up to 94% efficiency and low no-load power consumption below 0.5W. Built-in protections include overcurrent, overload, overvoltage, and thermal shutdown. Its robust design supports Class I and Class II systems, complies with international safety standards, and features a fan supply for cooling in larger models, making it ideal for industrial and electronic applications.
MEAN WELL EPP20024 industrial power supply Specifications:
- Output Power: 200W
- Input Voltage: 80~264VAC
- Efficiency: up to 94%
- No Load Power Consumption: <0.5W
- Output Voltages: 12V, 15V, 24V, 27V, 48V
- Ripple & Noise: 100-200mVp-p
- Line Regulation: ±0.5% to ±2.5%
- Load Regulation: 1%
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Cooling: Free air convection and forced air at 10CFM
- Built-in 12V/0.5A fan supply
- Operating Temperature: -30°C to +70°C
- Safety Standards: UL60950-1, TUV EN60950-1, IEC60950-1
- Dimensions: 101.6mm x 50.8mm x 29mm
- Weight: Approximately 0.19kg
- Certifications: UL, TUV, IEC approved
Buy the Mean Well EPP-200 – Reliable Power Supply for Industrial Applications
Order the reliable industrial power supply online today. The EPP-200 series offers high efficiency, compact size, comprehensive protections, and low no-load power. Designed for industrial automation, control systems, and electronic equipment, it ensures stable operation in demanding environments. Its universal input, multiple output voltages, and safety certifications make it ideal for various industrial and electronic applications. Purchase now and enjoy quick delivery, competitive pricing, and technical support to keep your systems running smoothly.
Buy Mean Well EPP-200 now and experience unmatched reliability and performance for your industrial control and automation systems.
Frequently Asked Questions
Where can I buy MEAN WELL EPP20024?
You can click on the BUY or RFQ button to purchase EPP20024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EPP20024?
You can download the EPP20024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EPP20024?
MEAN WELL
