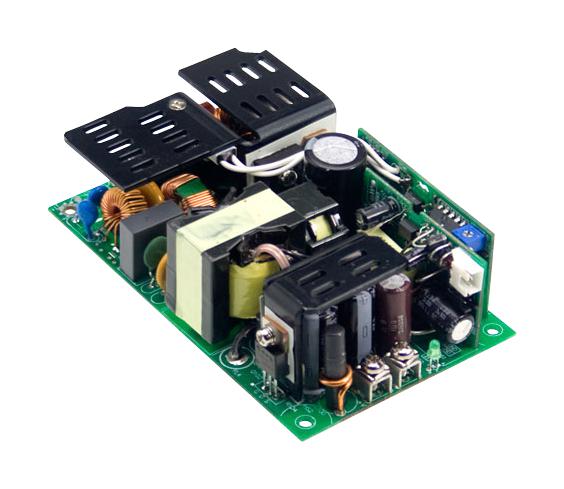

MEAN WELL EPP30027 Industrial Power Supply
The EPP-300 series is a high-efficiency 300W power supply with active Power Factor Correction (PFC), suitable for industrial and automation applications. It features universal AC input, a built-in 12V/0.5A auxiliary output, and protection against short circuit, overload, overvoltage, and temperature. The compact 5x3-inch size includes remote sense, power good/fail signals, and fan options for enhanced cooling. It operates efficiently up to 93%, withstands 300VAC surge input, and offers a standby 5V@1A output. Ideal for reliable industrial power solutions, it ensures safety and stable operation in demanding environments.
MEAN WELL EPP30027 Industrial Power Supply Specifications:
- Power: 300W rated, 200W convection, 200W at 20.5 CFM
- Input Voltage: 90~264VAC, 127~370VDC, 47~63Hz
- Efficiency: Up to 93%
- AC Input Connector: JST BSP-VH or equivalent
- DC Output Voltages: 12V, 15V, 24V, 27V, 48V
- Rated Currents: 25A (12V), 20A (15V), 12.54A (24V), 11.12A (27V), 6.25A (48V)
- Ripple & Noise: Max 150-250mVp-p depending on model
- Voltage Adjustment Range: 11.4~12.6V, 14.25~15.75V, 22.8~25.2V, 25.65~28.35V, 45.6~50.4V
- Protection Modes: Short circuit, overload (105-135%), overvoltage, over temperature
- Standby Power: 5V@1A with fan, 0.6A without fan
- Operating Temperature: -30°C to +70°C, derating as per curve
- Cooler: 20.5 CFM fan option or free air convection for lower power
- Safety Standards: UL60950-1, TUV EN60950-1
- Dimensions: 127mm x 76.2mm x 35mm
Buy the MEAN WELL 300W U+2013 Reliable Power Supply for Industrial Applications
Purchase the MEAN WELL 300W power supply online today for robust industrial power solutions. Featuring high efficiency up to 93%, comprehensive protection, and a compact design, this power supply ensures stable operation in demanding environments. Its universal input, auxiliary output, remote sensing, and safety approvals make it ideal for automation, control systems, and manufacturing applications. Experience long-lasting durability, easy installation, and dependable performance—order now and elevate your system reliability with this proven industrial component.
Get MEAN WELL 300W power supply today—built for precision, durability, and reliable industrial performance.
Frequently Asked Questions
Where can I buy MEAN WELL EPP30027?
You can click on the BUY or RFQ button to purchase EPP30027 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EPP30027?
You can download the EPP30027 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EPP30027?
MEAN WELL
