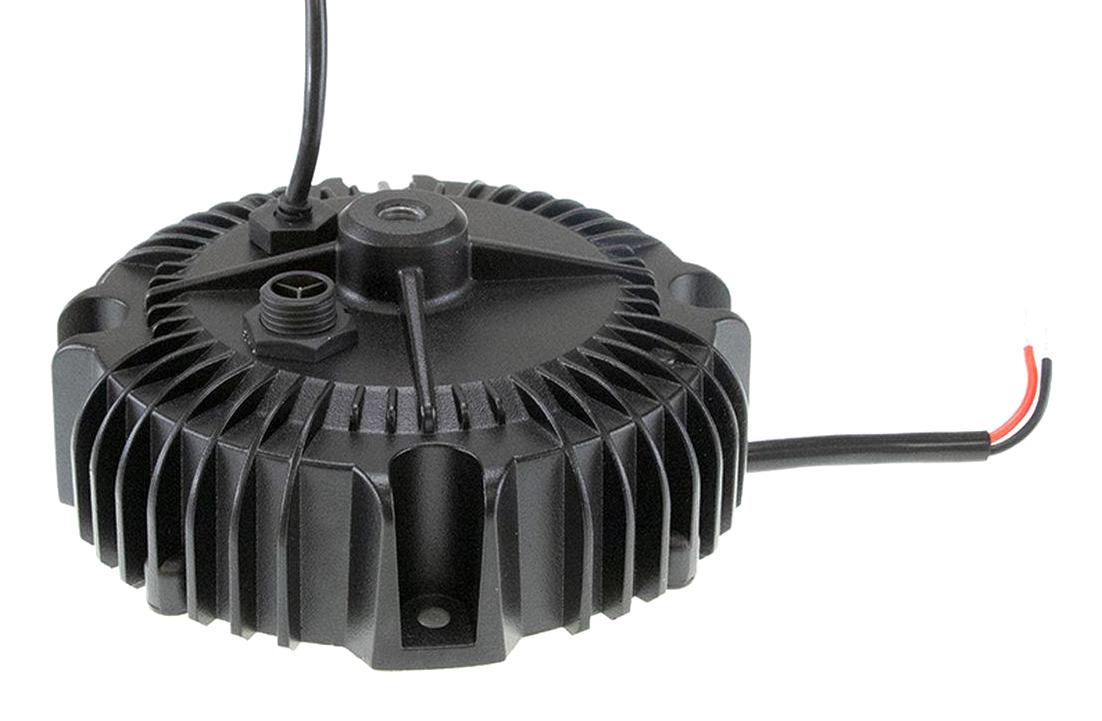

MEAN WELL XBG160A LED Driver
The XBG-160 series is a high-efficiency 160W AC/DC LED driver designed for indoor and outdoor LED lighting applications. Operating from 90~305VAC with active PFC, it offers full power at 70-100% constant power mode. Features include IP67 ingress protection, a patented metal housing, wide input range, adjustable output, and 3-in-1 dimming (0-10V, PWM, resistance). With a typical lifetime of over 50,000 hours, it supports explosion-proof lighting and class I division 2 environments, ensuring reliable illumination across diverse conditions.
MEAN WELL XBG160A LED Driver Specifications:
- Power: 160W
- Input Voltage: 90~305VAC
- Efficiency: Up to 93%
- Output Current: 2850~4100mA
- Output Voltage: 34V~56V
- IP Rating: IP67
- Operating Temperature: -40°C to +90°C
- Lifetime: >50,000 hours
- Dimming: 0-10V, PWM, resistance (3-in-1)
- Protection: Over current, short circuit, over voltage, over temperature
- Certifications: UL8750, CSA, IEC61347, ENEC
- Dimensions: 151.5mm x 60mm x (height varies), weight approx. 0.93 cu ft packaging
Buy the Mean Well Series XBG 160W LED Driver: XBG160A
Order the high-quality Mean Well XBG160A LED driver online today to ensure your lighting systems operate efficiently, reliably, and safely. Featuring IP67 ingress protection and a wide input voltage range of 90 to 305VAC, this 160W driver supports indoor and outdoor applications, including explosion-proof environments. Its advanced design incorporates adjustable output, 3-in-1 dimming (0-10V, PWM, resistance), and a lifespan exceeding 50,000 hours. Perfect for LED bay, stage, and spot lighting, this driver provides consistent performance and enhanced safety features for diverse lighting needs.
Buy Mean Well XBG160A now and experience unmatched reliability and high-performance LED lighting with versatile dimming options.
