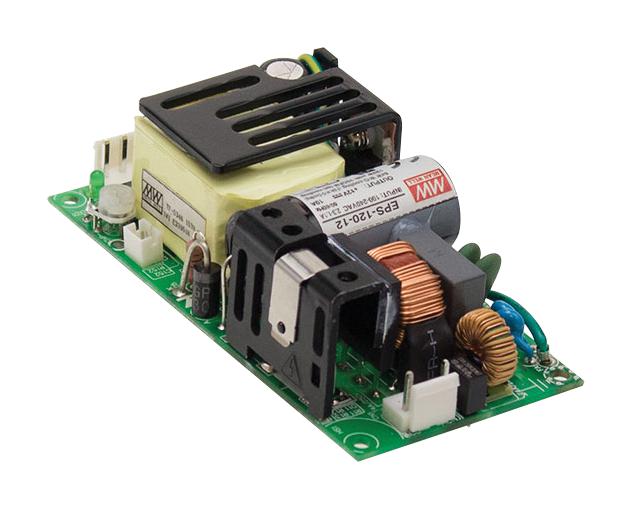

MEAN WELL EPS12024 Industrial Power Supply
EPS-120 series is a 120W high-efficiency, compact switching power supply suitable for industrial automation, control systems, and electronic equipment. With an 80~264VAC universal input, it achieves up to 91% efficiency and low no-load power consumption below 0.3W. Designed for both Class I (with FG) and Class II (without FG) systems, it offers multiple output voltages from 12V to 48V. Features include protections like overload, overvoltage, and overtemperature, with cooling via free air convection and optional forced airflow for 84W and 120W models. It supports UL, TUV, IEC standards, ensuring safety and reliability.
MEAN WELL EPS12024 Industrial Power Supply Specifications:
- Power: 120W
- Input Voltage: 80~264VAC, 113~370VDC
- Output Voltages: 12V, 15V, 24V, 27V, 48V
- Output Current: 10CFM 10A, 8A, 5A, 4.5A, 2.5A respectively
- Ripple & Noise: Max. 120-200mVp-p depending on model
- Efficiency: 88% to 91%
- Protections: Short circuit, Overload, Overvoltage, Overtemperature
- Cooling: Free air convection, forced air with 10 CFM fan for 84W & 120W models
- Dimensions: 101.6mm x 50.8mm x 29mm
- Working Temperature: -30°C to +70°C
- Safety Standards: UL60950-1, TUV EN60950-1, IEC60950-1
- Humidity: 20% to 90% RH non-condensing
- MTBF: 653,500 hours (MIL-HDBK-217F)
Buy the Mean Well EPS-120 U–Reliable Industrial Power Supply for Automation and Control
Enhance your industrial setup with the reliable and efficient industrial power supply. The EPS-120 series provides high efficiency up to 91%, low no-load power consumption, and comprehensive protections including overload, overvoltage, and overtemperature. Its compact size makes installation easy, while its compatibility with both Class I and Class II systems ensures versatility. Designed for harsh industrial environments, this power supply guarantees stable operation, long service life, and compliance with international safety standards. Order online today and ensure your machinery runs smoothly and efficiently.
Buy Mean Well EPS-120 now and experience unmatched reliability and performance for your industrial automation and control needs.
Frequently Asked Questions
Where can I buy MEAN WELL EPS12024?
You can click on the BUY or RFQ button to purchase EPS12024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EPS12024?
You can download the EPS12024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EPS12024?
MEAN WELL
