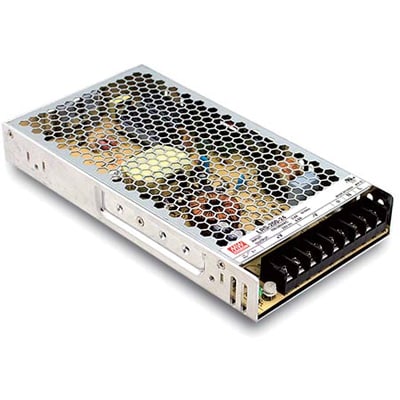

MEAN WELL LRS20012 Single Output Switching Power Supply
The MEAN WELL LRS-200 series is a 200W single-output enclosed type power supply with a 30mm low profile design. It features selectable AC input voltage (115VAC or 230VAC) and a range of output voltages (3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V). With high efficiency (up to 90%) and a metallic mesh case for enhanced heat dissipation, the LRS-200 operates reliably from -25℃ to +70℃. It includes complete protection functions, 5G antivibration capability, and complies with international safety regulations like UL 60950-1, making it suitable for industrial automation, control systems, and electronic equipment.
MEAN WELL LRS20012 Single Output Switching Power Supply Specifications:
- AC Input Range: Selectable by switch
- Surge Withstand: 300VAC for 5 seconds
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling: Free air convection
- Low Profile: 1U
- Vibration Test: Withstand 5G vibration test
- LED Indicator: Power on
- No Load Power Consumption: <0.75W
- Burn-in Test: 100% full load burn-in test
- Operating Temperature: Up to +70℃
- Operating Altitude: Up to 5000 meters
- Efficiency: 83%
- Warranty: 3 years
- Output Voltage: 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, 48V
- Voltage Adjustment Range: 2.97 ~ 3.6V (3.3V), 10.2 ~ 13.8V (12V), 13.5 ~ 18V (15V), 21.6 ~ 28.8V (24V), 43.2 ~ 52.8V (48V)
- Line Regulation: ±1.5%
- Load Regulation: ±1.0%
- Setup/Rise Time: 16ms/230VAC, 12ms/115VAC
- Hold-up Time: 1300ms, 50ms
- Ripple & Noise: 150mVp-p
- Input Voltage Range: 90 ~ 132VAC / 180 ~ 264VAC
- Frequency Range: 47 ~ 63Hz
- Input Current: 4A/115VAC, 2.2A/230VAC
- Inrush Current: 60A/115VAC, 60A/230VAC
- Leakage Current: <2mA / 240VAC
- Overload Protection: 110 ~ 140% rated output power
- Over Voltage Protection: Hiccup mode
- Isolation Voltage: I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
- Isolation Resistance: 100M Ohms / 500VDC / 25℃
- Working Temperature: -25 ~ +70℃
- Working Humidity: 20 ~ 90% RH
- Storage Temperature & Humidity: -40 ~ +85℃, 10 ~ 95% RH
- Vibration: 10 ~ 500Hz, 5G
- MTBF: 347.5K hrs
- Dimension: 215*115*30mm
