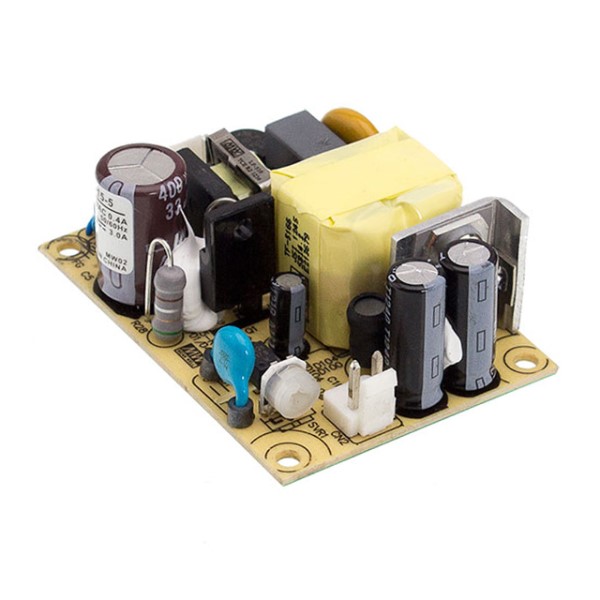

MEAN WELL EPS1512 Single Output Switching Power Supply
The MEAN WELL EPS-15 series provides a reliable and efficient 15W power solution for a wide range of applications. These single output switching power supplies offer universal AC input, comprehensive protection features including short circuit, overload, and over voltage, and are designed for cooling via free air convection. Their compact size and 3-year warranty make them a practical choice for industrial and commercial use. They meet various safety and EMC standards, ensuring safe and compliant operation.
MEAN WELL EPS1512 Single Output Switching Power Supply Specifications:
- Rated Power: 15W
- DC Voltage: 12V
- Rated Current: 1.25A
- Input Voltage Range: 85 ~ 264VAC or 120 ~ 370VDC
- Frequency Range: 47 ~ 63Hz
- Efficiency: 78%
- Operating Temperature: -30 ~ +70°C
- Leakage Current: 0.2A/230VAC
- Isolation Resistance: 100M Ohms / 500VDC
- Safety Standards: EN55032, EN61000-3-2,-3, EAC TP TC 020, GB9254, GB17625.1
Buy the EPS-15-12 MEAN WELL Single Output Switching Power Supply | myMectronic
Purchase the MEAN WELL EPS-15-12 securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL EPS1512?
You can click on the BUY or RFQ button to purchase EPS1512 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EPS1512?
You can download the EPS1512 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EPS1512?
MEAN WELL
