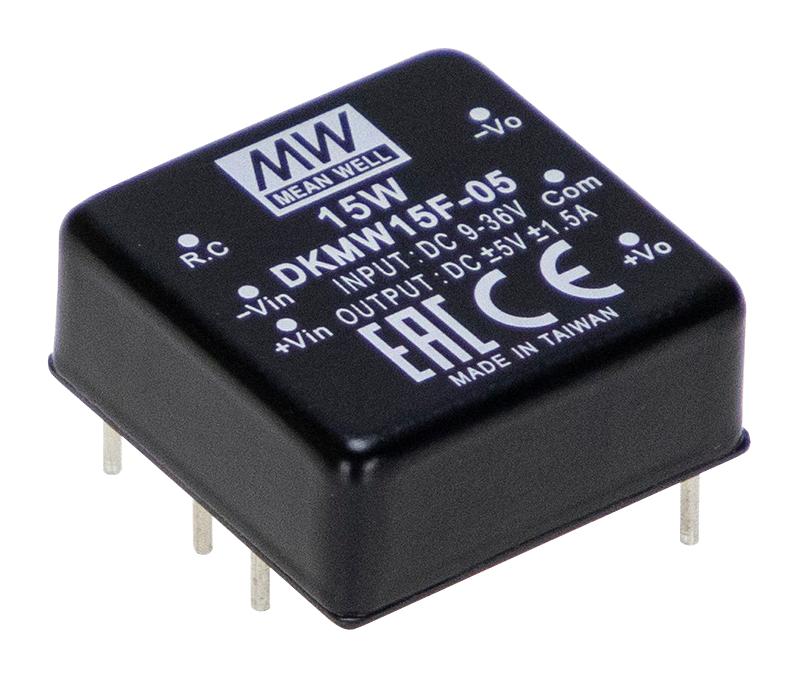

MEAN WELL DKMW15F05 DC-DC Converter Module
The DKMW15F-05 series is a 15W isolated and regulated DC-DC converter in a 1x1 inch DIP package, suitable for telecom, industrial control, and network systems. It supports input voltages of 9–36V, offers high efficiency up to 89%, and features ultra-wide input range, 3KVDC isolation, and protections against short circuit, overload, over voltage, and under voltage. With operational temperature range -40°C to +85°C, it ensures reliable performance in demanding environments. Its compact design makes it ideal for distributed power architectures and instrumentation applications.
MEAN WELL DKMW15F05 DC-DC Converter Module Specifications:
- Input Voltage Range: 9~36V or 18~75V depending on model
- Output Voltage: 3.3V, 5V, 12V, 15V (single), +5V, +12V, +15V (dual)
- Rated Power: 10W for 3.3V, 15W for others
- Efficiency: Up to 89%
- Isolation Voltage: 3KVDC between input and output
- Operating Temperature Range: -40°C to +85°C
- Ripple & Noise: 50mVp-p(max)
- Line Regulation: +0.5%
- Load Regulation: +0.5%
- Switching Frequency: 300KHz
- Protection: Short circuit (automatic recovery), Overload, Over voltage, Under voltage lockout
- Housing Dimensions: 25.4mm x 25.4mm x 10.2mm
- Working Humidity: 5% to 95% RH non-condensing
- Storage Temp & Humidity: -55°C to +125°C, 10% to 95% RH
- Isolation Resistance: 100MΩ at 500VDC
- Certification: EN55032 Class A, EAC TP TC 004 approval
- Cooling: Free-air convection
- Vibration: 10–500Hz, 2G
- Soldering Temp: Max 265°C for 3–5 seconds
Buy the Buy Mean Well DC-DC Converter Part Number DKMW15F05 Online
Purchase the Mean Well DKMW15F-05 DC-DC converter online today for high efficiency, compact design, and robust protection features. Ideal for telecom, industrial control, and network systems, this 15W module offers ultra-wide input voltage range, 3KVDC isolation, and operates reliably from -40°C to +85°C. Its small form factor and multiple output options make it perfect for distributed power architectures and instrumentation applications. Enjoy quick delivery, full warranty, and technical support by buying online now for your critical power needs.
Get Mean Well DKMW15F-05 today—built for reliable performance and efficient power conversion in demanding industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL DKMW15F05?
You can click on the BUY or RFQ button to purchase DKMW15F05 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DKMW15F05?
You can download the DKMW15F05 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DKMW15F05?
MEAN WELL
