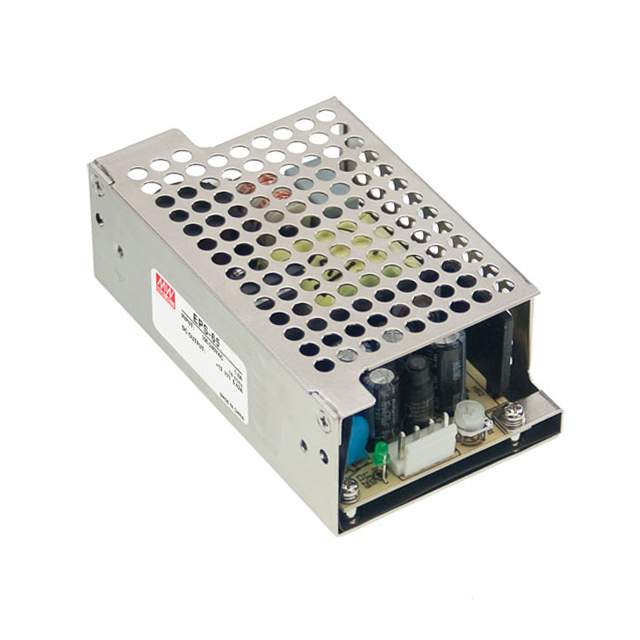

MEAN WELL EPS6524C Single Output Switching Power Supply
The MEAN WELL EPS-65-24-C is a 65W single output switching power supply engineered for reliable performance in diverse industrial and commercial applications. It boasts universal AC input, ensuring compatibility with various power sources, and achieves high efficiency up to 90%. Protections against short circuits, overload, and over voltage safeguard the connected equipment. The compact 4”x2” form factor and optional L-bracket and cover provide flexibility in installation. A three-year warranty underscores MEAN WELL’s commitment to quality and durability.
MEAN WELL EPS6524C Single Output Switching Power Supply Specifications:
- Universal AC input: Full range
- Efficiency: 88%
- Protections: Short circuit / Overload / Over voltage
- Cooling: Free air convection
- Size: 4”×2" compact
- LED indicator: Power on
- No load power consumption: <0.3W
- Warranty: 3 years
- Rated Power: 65W
- Output Voltage: 24V
- Rated Current: 2.71A
- Current Range: 0 ~ 3A
- Voltage Adj. Range: 21.6 ~ 27V
- Line Regulation: ±0.5%
- Load Regulation: ±1.0%
- Setup, Rise Time: 1000ms, 50ms/230VAC; 2000ms, 50ms/115VAC at full load
- Hold Up Time: 50ms/230VAC; 12ms/115VAC at full load
- Voltage Range: 90 ~ 264VAC; 127 ~ 370VDC
- Frequency Range: 47 ~ 63Hz
- AC Current: 1.8A/115VAC; 1 A/230VAC
- Inrush Current: COLD START 60A/230VAC
- Leakage Current: <2mA/240VAC
- Overload: 115 ~ 160% rated output power
- Over Voltage: 3.7 ~ 4.45V
- Working Temp: -30 ~ +70 ℃
- Working Humidity: 20 ~ 90% RH non-condensing
- Storage Temp, Humidity: -40 ~ +85 ℃, 10 ~ 95% RH
- Safety Standards: UL60950-1, TUV EN60950-1 approved
- Dimension: PCB:101.6*50.8*29mm (L*W*H); with optional CASE:103.4*62*37mm (L*W*H)
