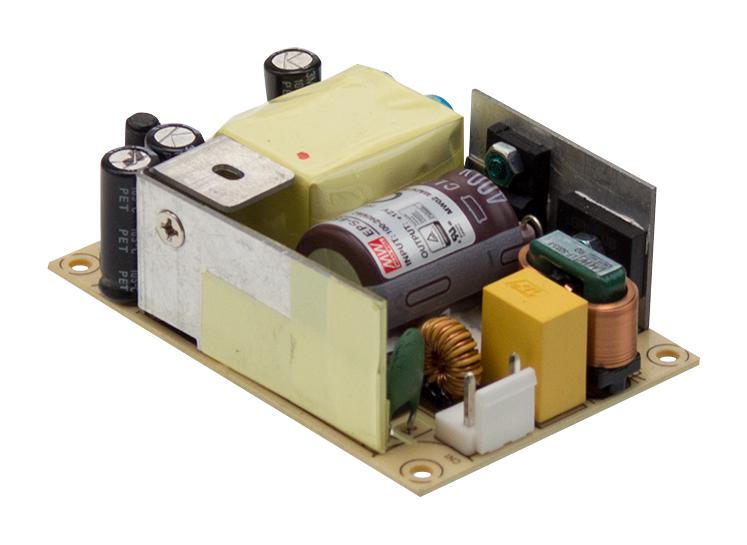

MEAN WELL EPS65S12 Power Supply
EPS-65S series is a compact, high-efficiency 65W switching power supply suitable for industrial and automation applications. It features universal 80-264VAC input, multiple output voltages from 3.3V to 48V, and operates reliably in temperatures from -30°C to +70°C. Designed with class I (without FG) installation, it boasts efficiency up to 91%, low no-load power consumption below 0.1W, and built-in protections for short circuits, overloads, and overvoltage. Its small 3x2 inch form factor enables easy integration in 1U applications, ensuring stable power delivery even at high altitudes up to 5000 meters.
MEAN WELL EPS65S12 Power Supply Specifications:
- Input Voltage: 80-264VAC, 47-63Hz
- Output Power: 65W
- Output Voltages: 3.3V, 5V, 7.5V, 12V, 15V, 24V, 48V
- Rated Current: 10A (3.3V, 5V), 8A (7.5V), 5.424A (12V), 4.344A (15V), 2.71A (24V), 1.364A (48V)
- Efficiency: Up to 91%
- No Load Power Consumption: <0.1W
- Dimensions: 76.2mm x 50.8mm x 24mm (3
- 2023.1
- 90
- 75
- 65
- 50
- 33
- 48
Buy the Brand Series EPS Series Power Supply: EPS-65S12
Discover the efficient and reliable industrial power supply designed for automation, factory equipment, and electronic devices. The EPS series offers compact size, high efficiency up to 91%, and extensive protections such as short circuit, overload, and overvoltage. Accepting universal AC input from 80 to 264 volts, it supports temperatures from -30°C to +70°C and can operate at altitudes up to 5000 meters. Its small form factor makes it ideal for 1U applications, ensuring stable power delivery in challenging environments. Easy-to-install, energy-efficient, and backed by a 3-year warranty, it’s the perfect choice for industrial projects.
Order your Brand Series EPS 65W power supply today and experience reliable performance and low power consumption for industrial automation.
Frequently Asked Questions
Where can I buy MEAN WELL EPS65S12?
You can click on the BUY or RFQ button to purchase EPS65S12 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EPS65S12?
You can download the EPS65S12 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EPS65S12?
MEAN WELL
