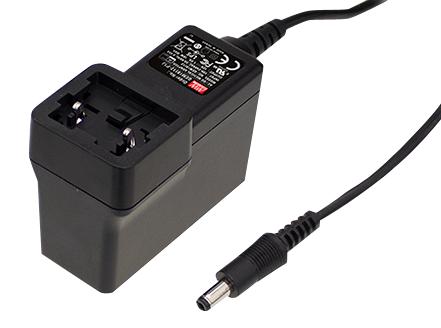

MEAN WELL GEM40I48P1J Medical Power Adapter
GEM40is a highly reliable, 40W wall-mounted medical power supply series offering compact design and international safety compliance. It features interchangeable AC plugs suitable for global use, accepts input voltage from 80VAC to 264VAC, and meets medical standards with ultra low leakage current (<100A). The power adapter boasts high efficiency up to 90.5%, low no-load power consumption below 0.1W, and EMI compliance. Its enclosure is made of flame-retardant plastic, and it includes protections for short circuit, overload, and overvoltage, making it ideal for medical devices such as blood glucose meters, nebulizers, and portable monitors.
MEAN WELL GEM40I48P1J Medical Power Adapter Specifications:
- Power: 40W
- Input Voltage Range: 80VAC–264VAC
- Output Voltage: 5V, 9V, 12V, 15V, 18V, 24V (interchangeable options)
- Rated Current: 5A (for 5V), 4A (9V), 3.33A (12V), 2.66A (15V), 2.228A (18V), 1.66A (24V)
- Ripple & Noise: Max 120mVp-p (100mVp-p for some models)
- Efficiency: Up to 90.5%
- No Load Power Consumption: <0.1W
- Leakage Current: <100A
- Standards: EN60601-1, EN60601-1-11, UL, CE, RoHS
- Protections: Short circuit, Overload, Overvoltage
- Enclosure: Flame-retardant plastic, fully enclosed
- Operating Temperature: -25°C to +70°C
- Humidity: 20% to 90% RH non-condensing
- Safety Certifications: UL, TUV, CE
- Dimensions: Approximate, detailed sizes vary by model
- Warranty: 3 years
- Optional lock DC plug available
Buy the Buy GEM Medical Power Supply Part Number GEM40I48P1J Online
Purchase the GEM40I48P1J high-reliability 40W medical power adapter online now. Equipped with interchangeable AC plugs for global compatibility, it offers high efficiency, low leakage current, and compliance with international safety standards. Its compact and rugged design makes it ideal for portable and stationary medical devices like blood glucose meters, nebulizers, and inhalers. With protections for overload, short circuit, and overvoltage, plus a 3-year warranty, this adaptor ensures safe and stable power delivery in medical environments worldwide.
Order your GEM40I48P1J medical power adapter today and ensure your portable health devices operate with reliable, safe, and energy-efficient power.
Frequently Asked Questions
Where can I buy MEAN WELL GEM40I48P1J?
You can click on the BUY or RFQ button to purchase GEM40I48P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GEM40I48P1J?
You can download the GEM40I48P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GEM40I48P1J?
MEAN WELL
