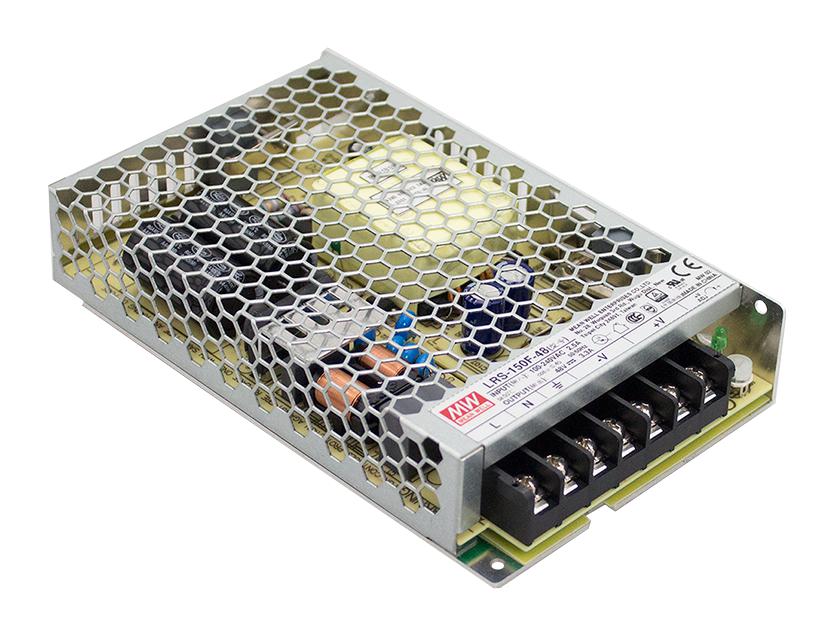

MEAN WELL LRS150F12 Power Supply
The LRS-150F series is a compact 150W single-output power supply designed for industrial and household applications. Its low profile of 30mm fits easily into various control systems and electronic equipment. Offering high efficiency up to 90%, it operates from -30°C to 70°C with a metallic mesh case for optimal heat dissipation. Features include universal AC input, low no-load power consumption (<0.5W</), and robust protections against short circuits, overload, overvoltage, and temperature. It meets safety standards like IEC/EN 60335-1 and UL60950-1, making it suitable for automation machinery, control systems, and household appliances.
MEAN WELL LRS150F12 Power Supply Specifications:
- Power Output: 150W
- Input Voltage: 85~264VAC
- Input Frequency: 47~63Hz
- Output Voltage Options: 5V, 12V, 15V, 24V, 36V, 48V
- Rated Current: 12.54A (5V), 6.5A (12V), 4.34A (15V), 3.3A (24V), 4.34A (36V), 3.3A (48V)
- Ripple & Noise: Max. 200mVp-p
- Efficiency: Up to 90%
- Operating Temperature: -30°C to 70°C
- Protection: Short circuit, overload, overvoltage, over temperature
- Dimensions: 162.5mm x 97mm x 30mm
- Isolation Voltage: 3.75KVAC (W/P-O), 2KVAC (I/P-FG), 1.25KVAC (O/P-FG)
- Vibration Resistance: 5G
- MTBF: 648.6K hours
- Compliance: IEC/EN 60335-1, UL60950-1, EN61558-1/-2-16
- Cooling: Air convection
- Warranty: 3 years
Buy the Meanwell 150W – Reliable Power Supply for Industrial Applications
Order the Meanwell 150W power supply online today for a dependable and efficient power solution suitable for industrial automation, control systems, or household appliances. Its high efficiency up to 90% ensures minimal energy loss, while protections against short circuits, overloads, and temperature increases guarantee safety and reliability in critical applications. Compact, low profile design at only 30mm tall allows easy integration. With universal AC input and operating temperature range from -30°C to 70°C, this power supply delivers consistent performance across various environments. Enjoy fast shipping and seamless purchasing—upgrade your equipment today!
Get Meanwell 150W power supply today—designed for industrial automation and household equipment with high efficiency and robust protections.
Frequently Asked Questions
Where can I buy MEAN WELL LRS150F12?
You can click on the BUY or RFQ button to purchase LRS150F12 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LRS150F12?
You can download the LRS150F12 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LRS150F12?
MEAN WELL
