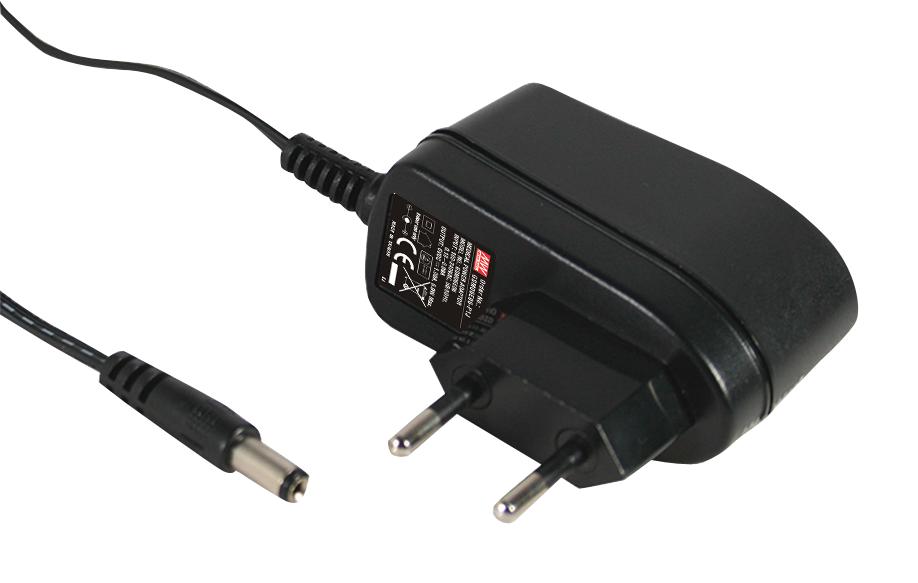

MEAN WELL GSM06E05P1J Medical Power Adapter
GSMO6E series is a highly reliable 6W medical power adapter designed for portable and bedside medical devices. It features a universal AC input (85-264VAC), economical power consumption below 0.3W in no-load conditions, and efficiency up to 82%. The fully enclosed flame-retardant plastic case ensures safety with double insulation, matching international medical standards with 2 x MOPP. It offers various output voltages from 5VDC to 24VDC, suited for blood glucose meters, blood pressure monitors, nebulizers, inhalers, and other medical equipment requiring low leakage current and high safety. Certified for medical safety, it includes protections for short circuit, overload, and overvoltage, making it a dependable choice for critical healthcare applications.
MEAN WELL GSM06E05P1J Medical Power Adapter Specifications:
- Input Voltage Range: 85VAC to 264VAC
- Output Voltages: 5VDC, 7.5VDC, 12VDC, 15VDC, 18VDC, 24VDC
- Rated Power: 6W
- Efficiency: Up to 82%
- No Load Power Consumption: <0.3W
- Leakage Current: <50uA
- Protection: Short Circuit, Overload, Over Voltage (Hiccup Mode)
- Output Ripple & Noise: 50mVp-p to 180mVp-p depending on model
- Operating Temperature: 0°C to +50°C
- Certifications: TUV EN60601-1, EN60601-1-11
- Dimensions: 32.66mm x 42.5mm x 34mm
- Flame Retardant Case: 94V-0 plastic
- Safety Compliance: 2 x MOPP, suitable for direct patient contact
- Vibration Resistance: 10Hz to 500Hz, 2G for 60 minutes
- MTBF: 500,000 hours
Buy the Buy Mean Well GSMO6E Series Medical Power Adapter Part Number GSM06E05P1J Online
Secure your medical equipment with the trustworthy GSMO6E series power adapter from Mean Well. Engineered for safety, efficiency, and durability, this 6W medical power supply offers universal input voltage from 85VAC to 264VAC, multiple output options, and international safety certifications. Its low leakage current and energy-saving features make it ideal for portable and bedside medical devices like blood glucose meters and nebulizers. Purchase online now to guarantee a reliable power source that adheres to strict medical safety standards and ensures patient safety with high-quality components and protections.
Order your Mean Well GSMO6E series medical adaptor part GSM06E05P1J today and ensure reliable, safe power for your critical healthcare devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM06E05P1J?
You can click on the BUY or RFQ button to purchase GSM06E05P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM06E05P1J?
You can download the GSM06E05P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM06E05P1J?
MEAN WELL
