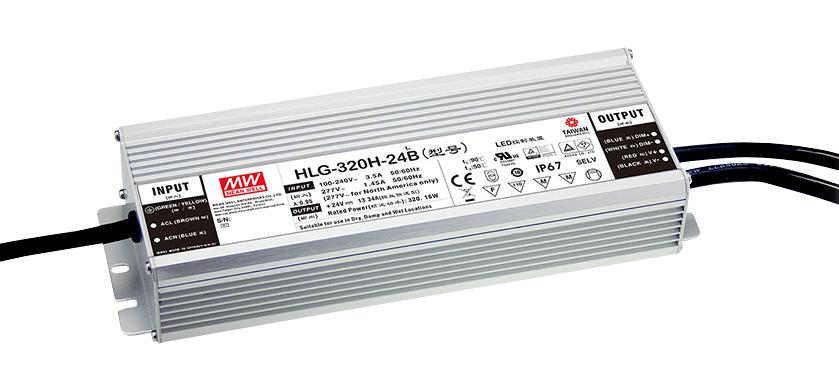

MEAN WELL HLG320H42B LED Driver
The HLG-320H series is a versatile 320W AC/DC LED driver designed for indoor and outdoor applications, supporting constant voltage and constant current modes. It features a metal housing with IP67/IP65 ingress protection, high efficiency up to 94%, and operates from 90 to 305VAC. Ideal for LED street lighting, high-bay, greenhouse, fishing lamps, and hazardous locations, it offers multiple dimming options including 3-in-1 (1-10VDC, PWM, resistance). Built for durability, its lifetime exceeds 62,000 hours with a 7-year warranty, making it suitable for demanding environments.
MEAN WELL HLG320H42B LED Driver Specifications:
- Rated Power: 320W
- Input Voltage: 90 ~ 305VAC
- Output Voltage Range: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V
- Rated Current: 5.95A to 19A depending on model
- Ripple & Noise: Max 250mVp-p (varies by model)
- Efficiency: Up to 94%
- Operating Temperature: -40°C to +90°C
- Ingress Protection: IP67/IP65
- Dimensions: 252*90*43.8mm
- Lifetime: Greater than 62,000 hours
- Certifications: UL, CE, ENEC, CCC, and others
- Dimming: 3-in-1 (1-10VDC, PWM, Resistance), optional timer dimming
- Protection: Short circuit, Over temperature, Over current, Surge immunity
Buy the MEAN WELL HLG-320H – Reliable LED Driver for Industrial Applications
Purchase the MEAN WELL HLG-320H LED driver online today and ensure your lighting system operates efficiently and reliably. With its rugged IP67/IP65 rating, high efficiency of up to 94%, and multiple dimming options, this 320W driver is ideal for outdoor and indoor LED applications like street lighting, high-bay, and greenhouse. Its extended lifetime of over 62,000 hours, combined with a 7-year warranty, provides peace of mind for demanding industrial environments. Connect with ease via waterproof connectors and enjoy fast, secure online ordering.
Buy MEAN WELL HLG-320H now and experience unmatched reliability and performance with versatile dimming options and high efficiency for your LED lighting needs.
Frequently Asked Questions
Where can I buy MEAN WELL HLG320H42B?
You can click on the BUY or RFQ button to purchase HLG320H42B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG320H42B?
You can download the HLG320H42B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG320H42B?
MEAN WELL
