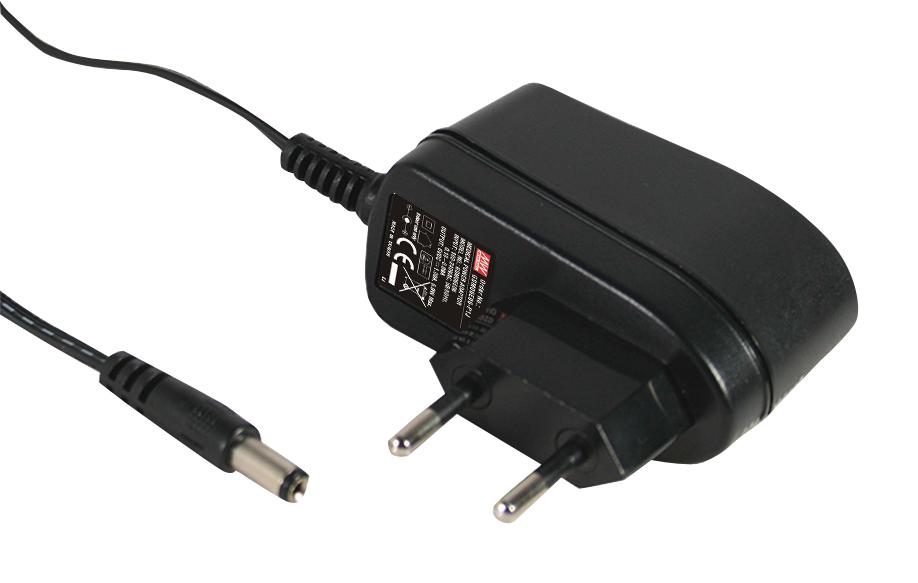

MEAN WELL GSM06E18P1J Medical Power Adapter
GSMO6E is a highly reliable, 6W wall-mounted medical power adapter suitable for portable and medical devices. It features a universal AC input from 85VAC to 264VAC, operates with high efficiency up to 82%, and has a low no-load power consumption below 0.3W, complying with EU ErP standards. The adapter ensures safety with medical certifications, double insulation, and ultra low leakage current (<50uA). Encased in flame-retardant plastic, it offers protections against short circuit, overload, and overvoltage, making it ideal for blood glucose meters, blood pressure monitors, nebulizers, inhalers, and similar medical equipment.
MEAN WELL GSM06E18P1J Medical Power Adapter Specifications:
- Input Voltage: 85VAC to 264VAC
- Output Power: 6W
- Output Voltage Range: 5VDC to 24VDC (various models)
- Efficiency: Up to 82%
- No Load Power Consumption: <0.3W
- Leakage Current: <50uA
- Safety Certifications: TUV EN60601-1, EN60601-1-11
- Protections: Short circuit, Overload, Over voltage
- Operating Temperature: 0~50°C
- Storage Temperature: -20~85°C
- Dimensions: Approx. 34 x 66 x 42.5 mm
- Enclosure: Fully enclosed flame-retardant plastic case
- Compliance: EU ErP, Class II power
Buy the MeanWell Series GSMO6E Medical Power Supply: GSM06E18P1J
Experience reliable power with the highly efficient and safe medical power adapter designed for portable healthcare devices. Compatible with various medical equipment, it offers ultra low leakage current under 50 microamps, ensuring safety for direct contact with patients. The adapter features low no-load power consumption below 0.3W, wide input voltage range, and compliance with international standards including EN60601-1. Encased in flame-retardant plastic with double insulation, it guarantees durability and protection in critical medical environments. Perfect for blood glucose monitors, blood pressure devices, nebulizers, and inhalers.
Get MeanWell GSM06E18P1J today—built for medical precision, safety and long-lasting reliability in portable healthcare devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM06E18P1J?
You can click on the BUY or RFQ button to purchase GSM06E18P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM06E18P1J?
You can download the GSM06E18P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM06E18P1J?
MEAN WELL
