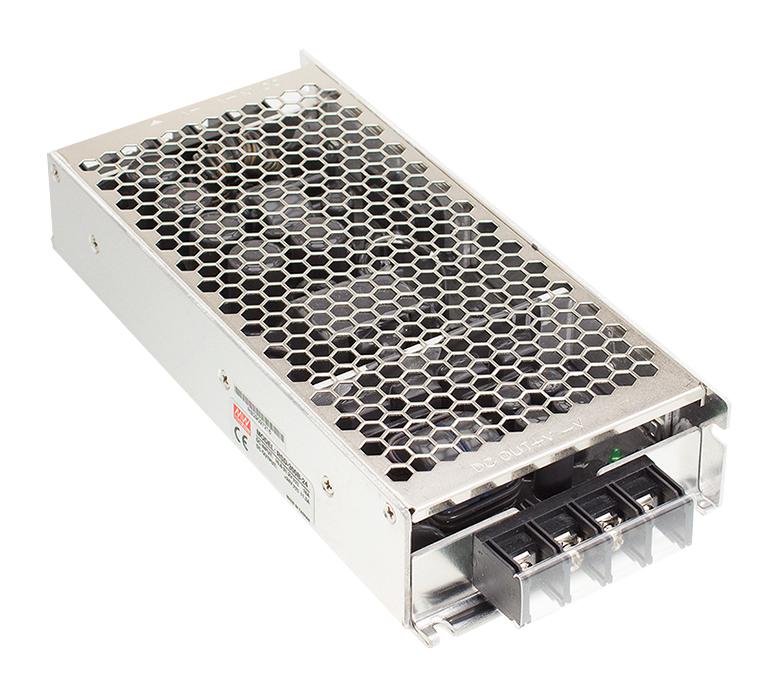

MEAN WELL RSD300F24 Railway DC-DC Converter
The RSD series is a 300W railway-grade DC-DC converter designed for reliable performance in demanding environments. It complies with EN50155 and EN45545-2 standards, featuring a 2:1 wide input range, protections against short circuit, overload, over voltage, over temperature, and input reverse polarity. The converter offers 4000VDC isolation, cooling by free air convection, and a low profile of 40mm. Built with long-life electrolytic capacitors, it includes an LED indicator for power status and undergoes 100% burn-in testing. Suitable for railway applications, it guarantees durability, safety, and operational stability with a 3-year warranty.
MEAN WELL RSD300F24 Railway DC-DC Converter Specifications:
- Model: RSD-300F-24
- Input Voltage Range: 16.8V to 33.6V DC (continuous), 14.4V to 33.6V DC (1 sec)
- Output Voltage: 24V DC
- Rated Power: 300W
- Rated Current: 12.58A
- Ripple & Noise: 150mVp-p (max)
- Voltage Tolerance: ±2.0%
- Line Regulation: ±0.2%
- Load Regulation: ±1.0%
- Efficiency: 91.5% (typical)
- Inrush Current: 45A/24V
- Protection: Short circuit, over load, over voltage, over temperature, input reverse polarity
- Isolation: 4000VDC
- Operating Temperature: -40°C to +70°C (derating at high temp)
- Storage Temperature: -40°C to +85°C
- Vibration: IEC61373 compliant, 10~500Hz, 5G
- Safety Standards: IEC60950-1, EN50155, EN45545-2
- MTBF: 130.7K hours
- Dimensions: 216mm x 97mm x 40mm
- Warranty: 3 years
Buy the Buy MEAN WELL RSD-300F-24 Part Number RSD300F24 Online
Purchase the MEAN WELL RSD-300F-24 railway DC-DC converter online today and enjoy dependable power supply for transportation systems. Engineered for high durability, it features wide input voltage, comprehensive protections including short circuit, overload, and over temperature, and compliance with EN50155 and EN45545-2 standards for safety and fire protection. With a low profile of 40mm and long-life electrolytic capacitors, this module ensures stable operation under harsh conditions. Experience quick delivery, excellent customer support, and a 3-year warranty—secure your project’s power needs now!
Order your MEAN WELL RSD-300F-24 series railway power supply today and ensure reliable performance in demanding transportation environments.
Frequently Asked Questions
Where can I buy MEAN WELL RSD300F24?
You can click on the BUY or RFQ button to purchase RSD300F24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSD300F24?
You can download the RSD300F24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSD300F24?
MEAN WELL
