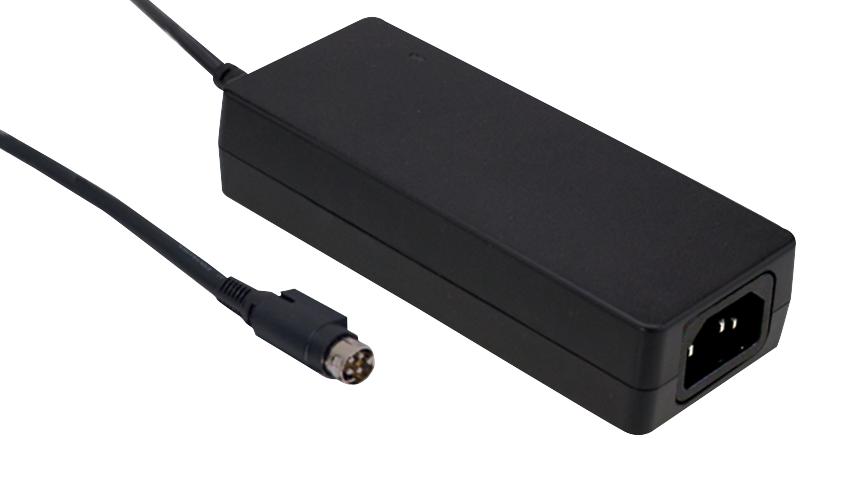

MEAN WELL GSM120A12R7B medical power adapter
GSM120A is a highly reliable, 120W medical power adapter series designed for medical devices with international safety standards, high efficiency up to 91.5%, and ultra low leakage current under 100uA. Its fanless design operates in -30°C to +70°C, ensuring durability. Suitable for various medical equipment including patient contact devices, monitors, and portable hemodialysis machines, it supports multiple output voltages from 12VDC to 48VDC, features comprehensive protections, and complies with global energy efficiency and safety certifications. It features a 3-pin IEC320-C14 inlet, LED power indicator, and robust plastic case.
MEAN WELL GSM120A12R7B medical power adapter Specifications:
- Output Power: 120W
- Input Voltage Range: 80VAC to 264VAC
- Output Voltages: 12V, 15V, 20V, 24V, 48V
- Rated Currents: 8.5A, 7A, 6A, 5A, 25A
- Ripple & Noise: 120mVp-p to 240mVp-p depending on model
- Efficiency: Up to 91.5%
- Leakage Current: <100uA earth leakage, <100uA touch current
- Operating Temperature: -30°C to +70°C
- Certifications: TUV EN60601-1, CE, UL, US-EISA 2007, Meets CoC V5
- Protection Features: Short circuit, Overload, Over voltage, Over temperature
- Dimensions: 167 x 67 x 35 mm
- Full load burn-in test passed
- Plastic case: UL 94V-0 rated
Buy the MW Series Medical Power Adapter: GSM120A12
Purchase the MW Series GSM120A12 medical power adapter online today to benefit from high efficiency, low leakage current, and comprehensive safety features. This 120W adapter supports multiple output voltages from 12V to 48V, making it suitable for diverse medical devices such as patient monitors, portable hemodialysis systems, and electronic medical instruments. Its global safety certifications, fanless design, and operating temperature range of -30°C to +70°C ensure durability and reliability in demanding clinical environments. Excellent energy savings combined with compact size make it an ideal choice for healthcare applications.
Buy MW Series GSM120A12 medical power adaptor now and ensure reliable performance and safety for critical healthcare equipment.
Frequently Asked Questions
Where can I buy MEAN WELL GSM120A12R7B?
You can click on the BUY or RFQ button to purchase GSM120A12R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM120A12R7B?
You can download the GSM120A12R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM120A12R7B?
MEAN WELL
