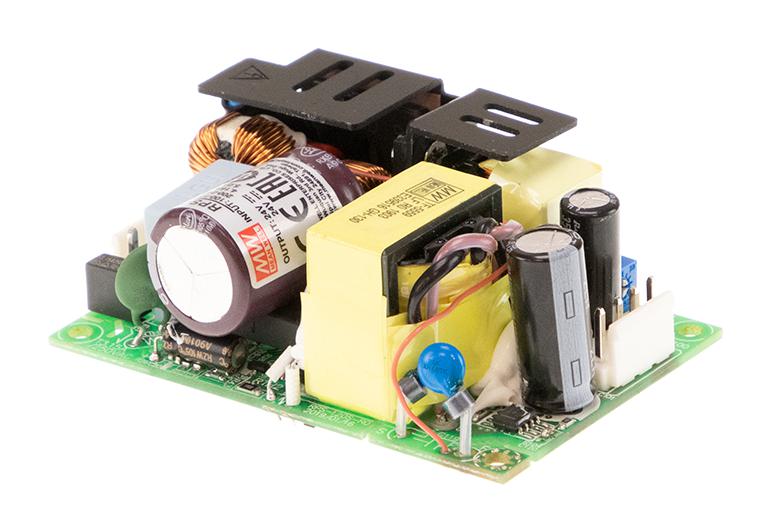

MEAN WELL RPS120S12 Medical Power Supply
RPS-120S is a highly reliable, compact medical power supply delivering 120W power within a 3x2 inch footprint, suitable for various medical equipment including monitors and pumps. It accepts 80-264VAC input, with models offering 12V to 48V outputs that operate at up to 94% efficiency with very low no-load power consumption below 0.3W. Conforming to international safety standards (2*MOPP), it supports Class I and Class II systems, providing low leakage current, EMI compliance, and operating over a temperature range of -30°C to +85°C. It features protections for overcurrent, overvoltage, overload, and overheating, and is suitable for high-altitude environments up to 4000 meters, making it ideal for BF-rated medical contact systems.
MEAN WELL RPS120S12 Medical Power Supply Specifications:
- Power Rating: 120W with up to 150W peak (10 sec.)
- Input Voltage Range: 80~264VAC, 47~63Hz
- Output Voltages: 12V, 15V, 24V, 27V, 48V
- Output Power: 114W to 150W depending on model
- Ripple & Noise Max: 100mVp-p to 200mVp-p
- Output Voltage Adjustment Range: 11.4~12.6V (12V model), 14.3~15.8V (15V), 22.8~25.2V (24V), 25.6~28.4V (27V), 45.6~50.4V (48V)
- Voltage Tolerance: +1% to +2%, Line Regulation: ±0.5%, Load Regulation: ±1%
- Efficiency: Up to 94%, No load power <0.3W
- Operating Temperature: -30°C to +85°C
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Isolation Resistance: 2xMOPP between primary and secondary, 1xMOPP to earth
- Dimensions: 76.2mm x 50.8mm x 28mm (3" x 2" x 1.1")
- Vibration Resistance: 10~500Hz, 2G
- Maximum Operating Altitude: 4000 meters
- Certifications: UL, CE, EMC EN55011, EN61000-3-2, EN60601-1
Buy the Mean Well RPS120S Series – Reliable Medical Power Supply for Industrial Applications
Purchase the RPS-120S medical power supply today to ensure reliable performance for your critical healthcare devices. With a compact 3x2 inch design, it offers high efficiency up to 94%, low no-load consumption below 0.3W, and robust safety features conforming to international standards. Suitable for a wide range of medical equipment such as monitors, pumps, and sleep apnea devices, it supports Class I and II systems, operates at -30°C to +85°C, and withstands high altitudes up to 4000 meters. Order now for dependable power solutions that meet medical safety and EMC requirements.
Get Mean Well RPS120S today—built for medical-grade accuracy, durability, and efficiency in demanding healthcare environments.
