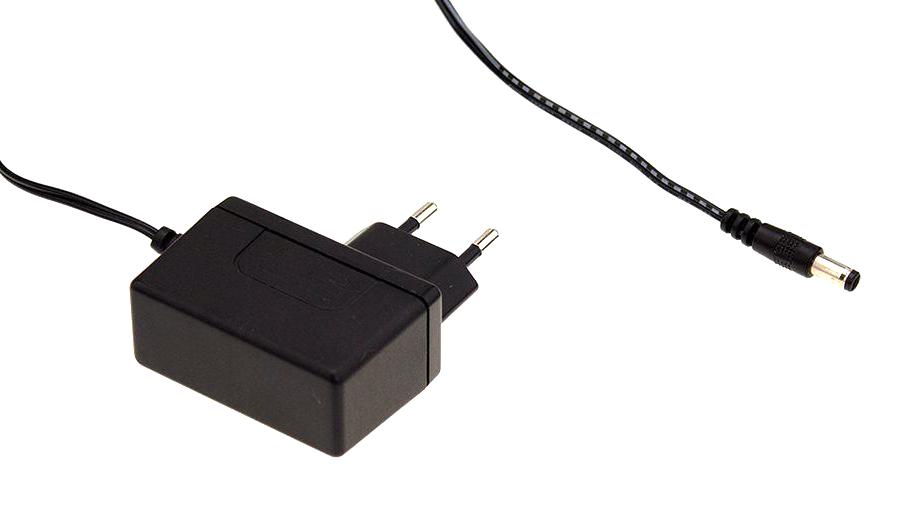

MEAN WELL GSM12E18P1J Medical Power Adapter
The GSM12E series is a compact, reliable 12W medical power supply designed for various portable and bedside medical devices. It features universal AC input (80-264VAC), high efficiency up to 87%, and minimal no-load power consumption under 0.075W, complying with energy-saving standards. Fully enclosed in flame-retardant plastic, it adheres to international safety standards (EN60601-1/EN60601-1-11), with low leakage current (<100μA) and robust protections including overvoltage, overload, and short circuit. Its medical-grade design makes it ideal for blood glucose meters, inhalers, nebulizers, and sleep apnea devices, ensuring safety and performance in sensitive environments.
MEAN WELL GSM12E18P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC, 47-63Hz
- Output Voltage: 18V (GSM12E18P1J)
- Rated Power: 12W
- Rated Current: 0.66A
- Output Ripple & Noise: 80mVp-p
- Efficiency: Up to 87%
- No Load Power Consumption: < 0.075W
- Operating Temperature Range: -20°C to +70°C
- Protection: Short Circuit, Overload, Over Voltage
- Isolation Level: Primary to Secondary 2 x MOPP
- Safety Certification: EN60601-1/EN60601-1-11, UL, CE
- Dimensions: Approx. 62.2mm x 39.7mm x 27.4mm
Buy the Mean Well GSM12E – Reliable 18V Medical Power Supply for Medical Devices
Secure your medical devices with the GSM12E 18V medical power adapter from Mean Well. This reliable 12W power supply features universal AC input (80-264VAC), high efficiency up to 87%, and low no-load power consumption below 0.075W. It complies with international safety standards, including EN60601-1, ensuring safe contact with patients. Its compact design, robust protections, and medical-grade construction make it ideal for devices like blood glucose meters, nebulizers, and sleep apnea machines. Order online today for dependable performance in sensitive medical environments.
Buy Mean Well GSM12E 18V medical adaptor now and experience unmatched reliability and performance for your critical healthcare equipment.
Frequently Asked Questions
Where can I buy MEAN WELL GSM12E18P1J?
You can click on the BUY or RFQ button to purchase GSM12E18P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM12E18P1J?
You can download the GSM12E18P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM12E18P1J?
MEAN WELL
