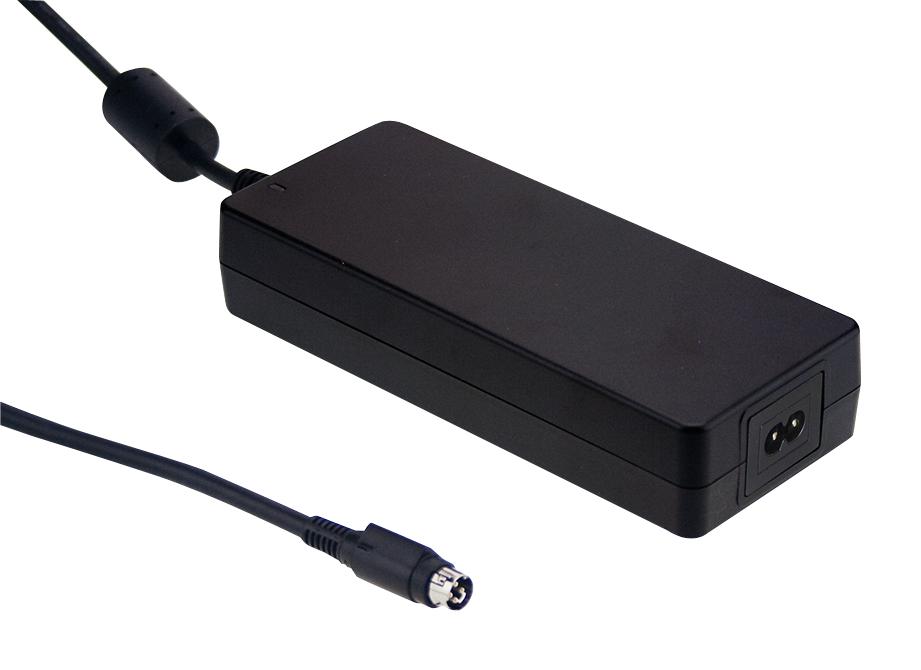

MEAN WELL GSM160B15R7B Medical Power Supply
GSM160B is a highly reliable, 160W desktop medical adaptor series designed for various medical devices requiring an output voltage between 12VDC and 48VDC. It features universal input ranging from 80VAC to 264VAC, with high efficiency up to 94%, ultra-low leakage current below 100μA, and compliance with international safety standards including 2*MOPP. Equipped with a 2-pin IEC320-C8 inlet, it offers excellent energy savings, reliable protection features, and a fanless, compact plastic case, making it ideal for medical applications like dialysis machines, portable monitors, and breath machines.
MEAN WELL GSM160B15R7B Medical Power Supply Specifications:
- Input Voltage: 80VAC to 264VAC, 47~63Hz
- Output Power: 138W (12V), 144W (15V), 160W (20V, 24V, 48V)
- Output Voltage Tolerance: +5.0% (12V,15V), +4.0% (20V,24V,48V)
- Ripple & Noise: Max 80mVp-p (12V), 100mVp-p (15V), 150mVp-p (20V), 180mVp-p (24V), 240mVp-p (48V)
- Efficiency: Up to 94%
- Leakage Current: Less than 100μA
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Dimensions: 175mm x 72mm x 35mm
- Operating Temperature: -30°C to +70°C
- Working Humidity: 20% to 90% RH non-condensing
- Safety Standards: EN60601-1, TUV, ANSI/AAMI ES60601-1, CE, UL Listed
- Construction: Fully enclosed ABS plastic case
- Insulation Level: Primary-Secondary 2xMOPP
- Mounting: Panel or chassis mounting compatible
- Warranty: 3 years
Buy the Buy Mean Well GSM160B Series Medical Power Supply Part Number GSM160B15R7B Online
Enhance your medical equipment with the reliable GSM160B series, a 160W high-efficiency power supply. Designed for medical devices requiring precise voltages and safety compliance, it features universal input voltage, low leakage current, and advanced protections. Its compact, fanless design ensures silent operation in sensitive environments. Perfect for dialysis machines, portable monitors, and breath machines, this power adapter guarantees long-term performance and safety. Purchase online today to secure fast delivery and professional support for your medical applications.
Order your Mean Well GSM160B15R7B medical adaptor today and ensure reliable, energy-efficient power for your critical medical devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM160B15R7B?
You can click on the BUY or RFQ button to purchase GSM160B15R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM160B15R7B?
You can download the GSM160B15R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM160B15R7B?
MEAN WELL
