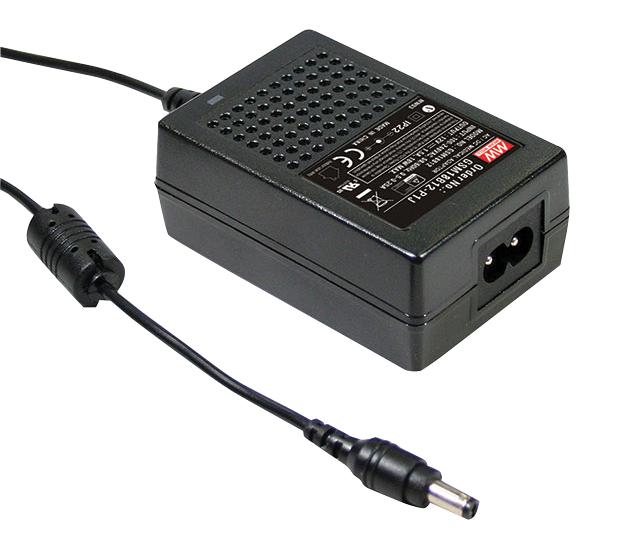

MEAN WELL GSM18B18P1J Medical Power Adapter
The GSM18B series is a highly reliable, 18W medical power adapter designed for medical devices in contact with patients, such as blood glucose meters and nebulizers. It features universal AC input from 80VAC to 264VAC, high efficiency up to 88%, ultra-low leakage current below 50uA, and complies with international safety standards including 2 x MOPP.塑The fully enclosed plastic case provides double insulation, while protections against short circuit, overload, and overvoltage enhance safety. Ideal for portable medical equipment requiring stable, efficient power with low noise and energy consumption.
MEAN WELL GSM18B18P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC, 47-63Hz
- Output Power: 18W
- Output Voltage: 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 48V options
- Rated Current: 3A (5V), 2A (7.5V/9V), 1A (12V), 0.75A (15V), 0.375A (18V), 0.2A (24V), 0.125A (48V)
- Efficiency: Up to 88%
- Leakage Current: Less than 50uA
- Features: Universal AC input, low no-load power consumption (<0.1W), high temperature tolerance (+60°C), class II power without earth pin
- Protections: Short circuit, overload, over voltage, automatic recovery in fault conditions
- Enclosure: Fully enclosed plastic case, UL94V-0 fire retardant
- Dimensions: 79*54*33mm
- Certifications: UL, TUV, EN60601-1, EN60601-1-11, FCC, CE
Buy the Reliable Medical Power Adapter GSM18B – Efficient 18W for Medical Equipment
Discover the GSM18B series, a reliable 18W medical power adapter optimized for portable and medical devices. It features high efficiency up to 88%, ultra-low leakage current, and universal input voltage from 80VAC to 264VAC. Designed with a fully enclosed UL94V-0 plastic case, it ensures safety with double insulation and protection against short circuit, overload, and overvoltage. Perfectly suited for devices like blood pressure monitors, nebulizers, and inhalers, this power supply offers low noise, energy savings, and is compliant with international medical safety standards. A must-have for healthcare equipment requiring stable, efficient power supply.
Buy the GSM18B medical power adapter now and ensure reliable, energy-efficient power for patient-contact medical devices with safety and certification compliance.
Frequently Asked Questions
Where can I buy MEAN WELL GSM18B18P1J?
You can click on the BUY or RFQ button to purchase GSM18B18P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM18B18P1J?
You can download the GSM18B18P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM18B18P1J?
MEAN WELL
