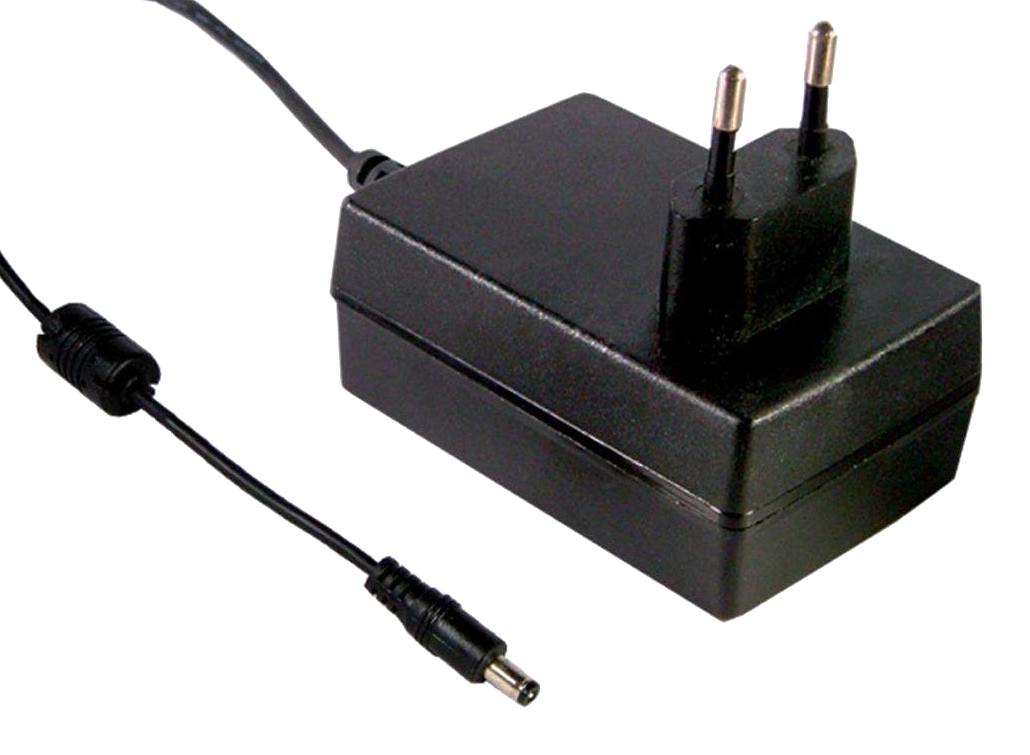

MEAN WELL GSM36E09P1J Medical Power Adapter
GSM36E series is a reliable 36W medical power adapter designed for portable and medical equipment, offering high efficiency up to 88%, low leakage current below 50μA, and compliance with international medical safety standards. Its universal input voltage range (80VAC-264VAC) supports various medical devices requiring 5V to 48V DC outputs. With low no-load power consumption (<0.1W) and high operating temperature capability (+60°C), this fully enclosed plastic case power supply ensures safety, durability, and energy efficiency, making it ideal for blood glucose meters, blood pressure monitors, nebulizers, and inhalers in medical environments.
MEAN WELL GSM36E09P1J Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC to 264VAC
- Output Power: 36W
- Output Voltage Options: 5V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 4A, 3A, 2.44A, 2A, 1.58A, 0.75A
- Ripple & Noise (max): 120mVp-p to 240mVp-p depending on output
- Voltage Tolerance: 2.0% to 5.0%
- Line & Load Regulation: 1.0% to 5.0%
- Efficiency: Up to 88%
- No Load Power Consumption: <0.1W
- Operating Temperature: Up to +60°C
- Protection: Short Circuit, Overload, Over Voltage
- Safety Certifications: Medical safety approved (2 x MOPP), UL, EN60601-1
- Housing: Fully enclosed flame-retardant plastic case
- Leakage Current: <50μA
- Dimensions: Approx. 79*54*33mm
Buy the Brand 36WACDC – Reliable Medical Power Adapter for Industrial Applications
Purchase the reliable GSM36E09 medical power adapter online now to ensure your portable healthcare devices operate safely and efficiently. Featuring high efficiency up to 88%, universal input voltage support, and low leakage current, this ultra-compact power supply complies with international safety standards. Its durable plastic enclosure provides insulation and durability, making it suitable for various medical applications like blood glucose meters, blood pressure monitors, inhalers, and nebulizers. Enjoy secure, energy-efficient power with quick online ordering and fast delivery.
Order your Brand Series GSM36E09 P1J medical power adapter today and ensure dependable, efficient power supply for your portable medical devices.
