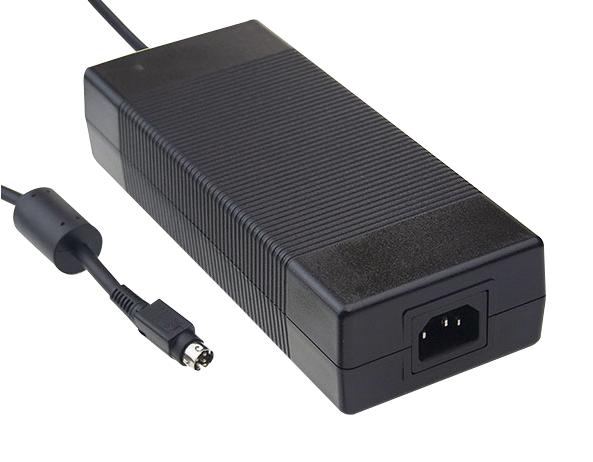

MEAN WELL GSM220A48R7B Medical Power Adapter
GSM220A series is a highly reliable 220W medical power adapter designed for various healthcare devices, including monitors and dialysis machines. This desktop adaptor features a 3-pin IEC320-C14 inlet, ultra-low leakage current (<100uA), efficiency up to 94.5%, and meets international medical safety standards (2*MOPP). It offers several output voltages ranging from 12VDC to 48VDC, with low power consumption (<0.15W no-load). Its compact, flame-retardant case supports operating temperatures from -30°C to +70°C, ensuring safe and energy-efficient device operation.
MEAN WELL GSM220A48R7B Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC to 264VAC
- Output Voltages: 12V, 15V, 20V, 24V, 48V
- Rated Power: 180W to 220W depending on model
- Efficiency: Up to 94.5%
- Leakage Current: <100uA
- Operating Temperature: -30°C to +70°C
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Dimensions: 210mm x 85mm x 46mm
- Housing: Flame-retardant plastic case
- Approval: Medical safety certificates (2*MOPP)
- Power Factor: >0.91 at 230VAC, >0.98 at 115VAC
- No-load Power Consumption: <0.15W
- Certificate: TUV EN60601-1, ANSI/AAMI ES60601-1
- Isolation Level: 2xMOPP
Buy the Buy Medical Power Adapter Part Number GSM220A48R7B Online
Order the GSM220A48R7B medical power adapter online today and enjoy dependable power delivery for healthcare devices. This 220W, high-reliability adaptor supports multiple output voltages, including 48VDC, ensuring optimal performance for patient monitors, dialysis machines, and other medical equipment. Its advanced safety features, UL certification, and low leakage current make it suitable for contact with patients. The compact design with flame-retardant casing and excellent energy efficiency levels guarantees reliable operation in demanding clinical environments. Purchase now to experience superior quality and peace of mind.
Buy GSM220A48R7B medical power adapter now and ensure reliable power for critical healthcare equipment with high efficiency and safety standards.
Frequently Asked Questions
Where can I buy MEAN WELL GSM220A48R7B?
You can click on the BUY or RFQ button to purchase GSM220A48R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM220A48R7B?
You can download the GSM220A48R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM220A48R7B?
MEAN WELL
