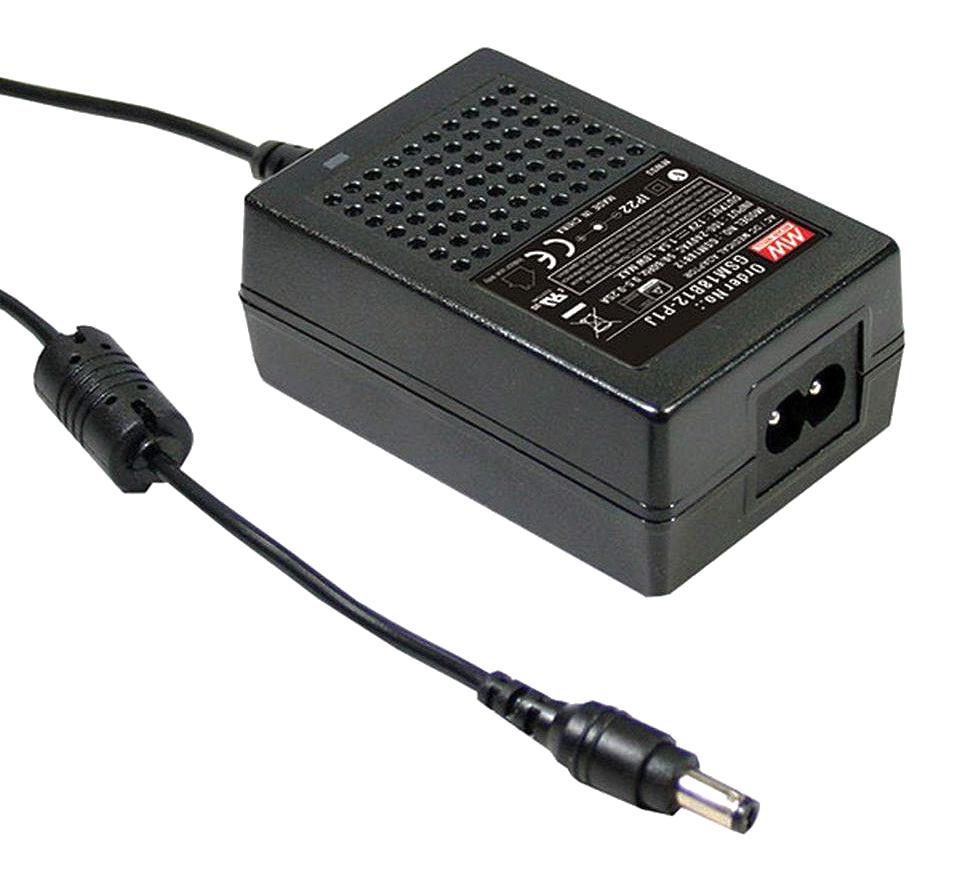

MEAN WELL GSM25B07P1J Medical Power Adapter
GSM25B is a highly reliable, 25W medical adapter series designed for portable and medical devices. It features universal AC input, high efficiency up to 88%, and ultra-low leakage current under 50uA, ensuring safety and energy savings. Compliant with international medical safety standards with 2 x MOPP, it supports a wide input range from 80VAC to 264VAC, offering various output voltages from 5VDC to 48VDC. The fully enclosed plastic case provides double insulation, and the adapter includes protections for short circuits, overloads, and overvoltage, making it ideal for medical applications in direct contact with patients.
MEAN WELL GSM25B07P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Power: 20W to 25W depending on model
- Output Voltage: 5V, 7.5V, 15V, 18V, 24V, 48V options
- Rated Current: 1.66A at 15V, 2.938A at 7.5V, others proportionally lesser
- Ripple & Noise: 60mVp-p to 240mVp-p depending on model
- Voltage Tolerance: ±2% to ±6% per model
- Efficiency: up to 88%
- Leakage Current: <50uA
- Operating Temperature: -25°C to +60°C
- Dimensions: Approx. 79*54*33mm
- Protection: Short circuit, Overload, Over voltage
- Safety Standards: UL60601-1, EN60601-1, TUV, EAC
- Environmental: Storage -40°C to +85°C, Humidity 10% to 95%
Buy the Buy Medical Power Supply Part Number GSM25B07-P1J Online
Secure your portable medical devices with the GSM25B07-P1J high-reliability medical power adapter. This 25W unit offers universal input from 80V to 264VAC, high efficiency up to 88%, and ultra-low leakage current ensuring safety and energy savings. Its robust design meets international medical standards including UL60601-1, EN60601-1, and TUV approval, making it suitable for direct patient contact applications. Lightweight and fully enclosed, it features protections against short circuits, overloads, and overvoltage, providing dependable power for critical healthcare equipment.
Order your reliable GSM25B07-P1J medical power adapter today and ensure safe, efficient power for your essential portable medical devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM25B07P1J?
You can click on the BUY or RFQ button to purchase GSM25B07P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM25B07P1J?
You can download the GSM25B07P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM25B07P1J?
MEAN WELL
