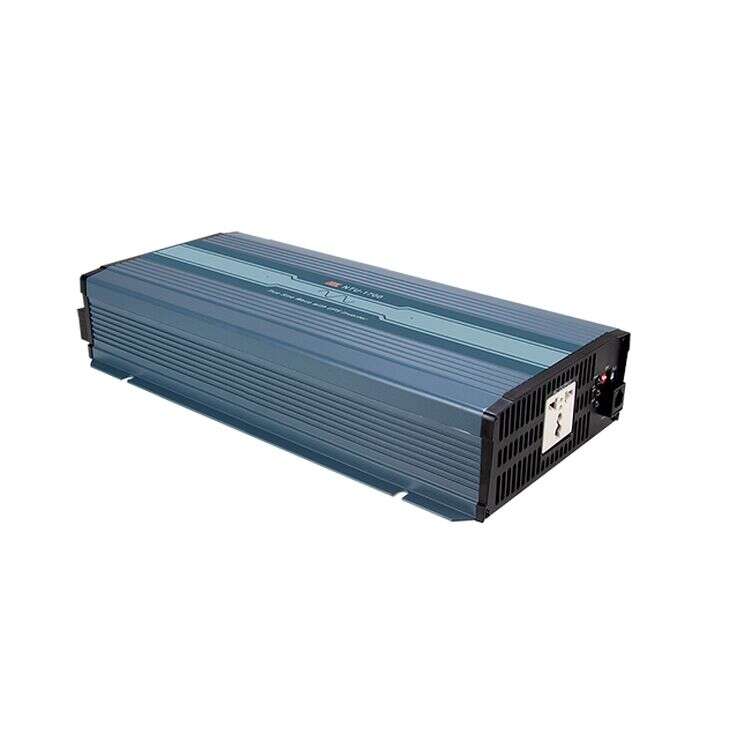

MEAN WELL NTU1700148US High Reliable True Sine Wave Inverter
The MEAN WELL NTU-1700 is a 1700W high reliable off-grid true sine wave DC-AC power inverter with a built-in UPS function. Its key features include a digital design with MCU control, streamlined circuitry, high-quality fan, 3400W peak power, adjustable AC output voltage and frequency, wide operating temperature range, power ON-OFF remote control, and complete protection features. Combined with batteries, the NTU-1700 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power.
MEAN WELL NTU1700148US High Reliable True Sine Wave Inverter Specifications:
- ESD: Radiated, EFT / Burst, Surge, Conducted, Magnetic Field, Voltage Dips and Interruptions
- EMC Immunity: BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11
- EMC Emission: BS EN/EN61000-3-2, BS EN/EN61000-3-3
- Rated Power: 1500W
- Overload: 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
- Peak Power: 2250W
- Surge Power: 3000W
- Waveform: True sine wave (THD<3%)
- AC Output Voltage: 100/110/115/120Vac±16%, recover±13%
- Frequency Range: 45 ~ 65Hz
- AC Regulation: ±3.0% at rated input voltage
- Efficiency: Typical 89%
- DC Current: Typical 40A
- DC Input Voltage: 12Vdc, 24Vdc, 48Vdc
- Fuse (Internal): 170A
- Low Voltage: 10 ~ 16.5Vdc
- High Voltage: 40 ~ 66Vdc
- Working Temp.: -25 ~ +70℃
- Working Humidity: 20% ~ 90% RH non-condensing
- Storage Temp. & Humidity: -30 ~ +70℃ / -22 ~ +158 F, 10 ~ 95% RH non-condensing
- Vibration: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
- Model Encoding: NTU-1700-112, NTU-1700-124, NTU-1700-148, NTU-1700-212, NTU-1700-224, NTU-1700-248
- Remote Control: Order No.: IRC1, IRC2, IRC3
- Connector: DS-RJ11-RS232
- Safety & EMC: UL458, IEC62368-1, BS EN/EN62368-1
- MTBF: Not specified
- Dimension: 400*184*70mm (L*W*H)
Buy the NTU-1700-148US MEAN WELL High Reliable True Sine Wave Inverter | myMectronic
Purchase the MEAN WELL NTU-1700-148US securely and reliably for your power needs.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL NTU1700148US?
You can click on the BUY or RFQ button to purchase NTU1700148US from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part NTU1700148US?
You can download the NTU1700148US datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of NTU1700148US?
MEAN WELL
