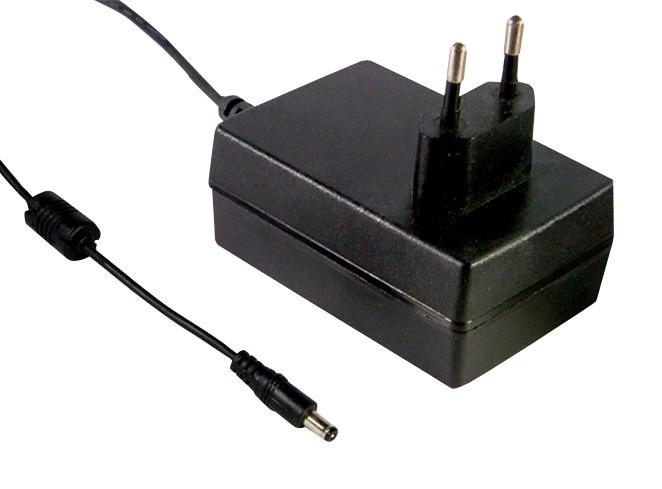

MEAN WELL GSM25E15P1J Medical Power Adapter
The GSM25E series is a high-reliability, 25W medical power adapter designed for portable and medical devices requiring safety and efficiency. It features universal AC input from 80VAC to 264VAC, with output voltages from 5V to 48VDC, suitable for applications like blood glucose meters, blood pressure monitors, nebulizers, inhalers, and other BF-rated medical equipment. Compliant with international safety standards (2 x MOPP), it offers up to 88% efficiency, low leakage current below 50μA, and a fully enclosed flame-retardant plastic case, ensuring safety, durability, and low power consumption, meeting EU ErP and CoC V5 regulations. The power supply includes protections for overvoltage, overload, and short circuits, with optional locking DC plugs and LED indicators for power status, all backed by a 3-year warranty. Its design guarantees consistent performance at elevated temperatures up to +60°C and ensures medical safety in direct contact with patients.
MEAN WELL GSM25E15P1J Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC to 264VAC, 47~63Hz
- Output Power: 20W to 25W
- Output Voltages: 5V, 7.5V, 15V, 18V, 24V, 48V
- Rated Current: 4A (5V), 2.93A (7.5V), 1.664A (15V), 1.384A (18V), 1.044A (24V), 0.524A (48V)
- Ripple & Noise: 60mVp-p to 240mVp-p depending on model
- Voltage Tolerance: +6.0% to 2.0%, depending on voltage
- Line Regulation: 1.0% to 1.0%
- Load Regulation: +6.0% to 2.0%
- Efficiency: Up to 88%
- No Load Power Consumption: <0.1W
- Leakage Current: <50μA at 264VAC
- Overload Protection: Hiccup mode, auto recovery
- Over Voltage Protection: Shutdown, auto recovery
- Operating Temperature: -25°C to +60°C
- Storage Temperature & Humidity: -40°C to +85°C, 10-95% RH
- Dimensions: 79mm x 54mm x 33mm
- Certification: UL60601-1, TUV EN60601-1-11, EMC compliant
Buy the Mean Well Series GSM25E 25W Medical Adapter: GSM25E15P1J
Purchase the reliable and energy-efficient GSM25E series medical power adaptor online today. Designed for safety and durability, it offers universal input, multiple output voltages, and low leakage current, making it ideal for portable medical devices like blood glucose meters, blood pressure monitors, and nebulizers. Compliant with international standards and equipped with protections against overvoltage, overload, and short circuits, this adaptor guarantees safe contact with patients and optimal performance even at high temperatures. With a 3-year warranty, secure your medical device power needs now.
Order your Mean Well Series GSM25E 25W medical power adaptor today and ensure your portable medical devices operate safely and efficiently.
Frequently Asked Questions
Where can I buy MEAN WELL GSM25E15P1J?
You can click on the BUY or RFQ button to purchase GSM25E15P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM25E15P1J?
You can download the GSM25E15P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM25E15P1J?
MEAN WELL
