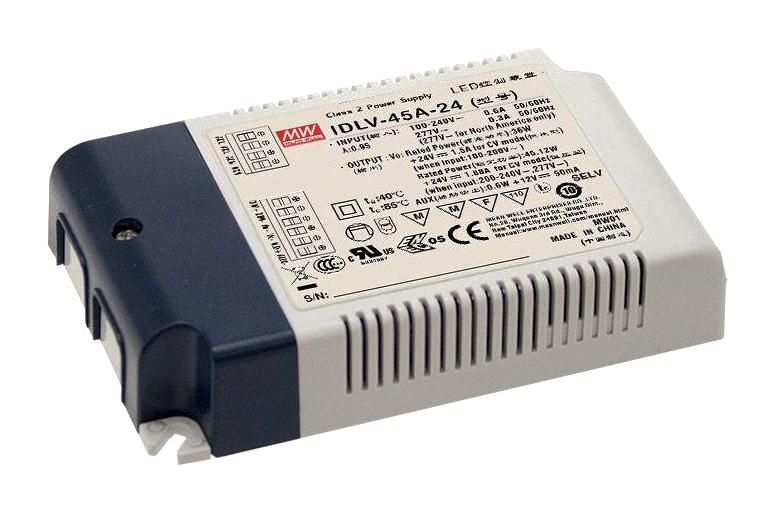

MEAN WELL IDLV45A48 LED Driver
The IDLV-45 series is a 45W LED driver designed for efficient indoor LED lighting, including strips, decorative, and architectural lighting. Operating from 90~295VAC, it features constant voltage PWM output at 1KHz, high efficiency up to 90%, and a fanless design for reliable performance from -20°C to +85°C. It offers multiple models with rated voltages from 12V to 60V and options for 2-in-1 dimming (0-10VDC, PWM) plus auxiliary DC output, making it versatile for various LED applications with robust protection and compliance standards.
MEAN WELL IDLV45A48 LED Driver Specifications:
- Input Voltage Range: 90~295VAC / 127~417VDC
- Rated Power: 45W
- Rated Voltage & Current: 12V/3.0A, 24V/1.88A, 36V/1.254A, 48V/0.944A, 60V/0.754A
- Dimming Range: 0~100%
- PWM Frequency: 1KHz
- Efficiency: Up to 90%
- Operating Temperature: -20°C to +85°C
- Dimensions: 120*75*25mm
- Protection: Over current, short circuit, and over temperature
- Certification & Safety: EN55015, EN61000-3-2, EN61000-3-3, UL listed
- Leakage Current: <0.75mA at 277VAC
- No Load Power Consumption: <0.5W for Blank-Type
- Case Temp Max.: +85°C
Buy the Mean Well Series LED Driver: DLV-45 45W PWM Output
Enhance your lighting setup with the reliable and high-efficiency 45W LED driver from Mean Well SeriesIDLV-45. Ideal for indoor LED strip, decorative, and architectural lighting, it features PWM constant voltage output at 1KHz, dimming options, and an operating temperature range from -20°C to +85°C. Its high efficiency up to 90%, compact size, and built-in safety protections ensure optimal performance for your lighting projects. Purchase online to secure a trusted component for your LED system, backed by a 3-year warranty and certified standards.
Order your Mean Well SeriesIDLV-45 45W PWM Output LED Driver today and give your LED lighting projects the dependable efficiency and reliability they deserve.
