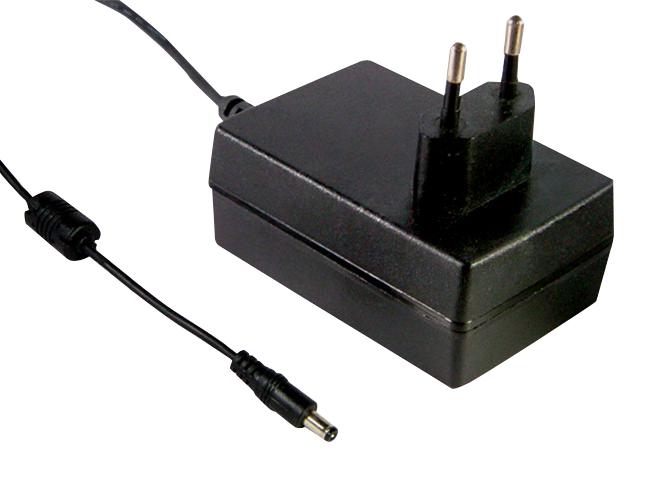

MEAN WELL GSM25E18P1J Medical Power Adapter
GSM25E series is a highly reliable, 25W wall-mounted medical power adapter designed for portable and medical devices with strict safety and efficiency standards. It features universal AC input from 80VAC to 264VAC, ultra-low leakage current (<50A), and an efficiency of up to 88%. Certified for medical safety (2 x MOPP), it supports multiple output voltages (5V to 48V) suitable for blood glucose meters, blood pressure monitors, nebulizers, inhalers, and other medical devices. Its robust plastic case provides insulation and durability, while protections include short circuit, overload, and over voltage. It complies with EU ErP, CoC, and safety standards, with optional lockable DC plugs and a 3-year warranty.
MEAN WELL GSM25E18P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Power: 20W to 25W depending on model
- Output Voltages: 5V, 7.5V, 15V, 18V, 24V, 48V
- Rated Currents: 4A, 2.93A, 1.664A, 1.384A, 1.044A, 0.524A
- Ripple & Noise: 60mVp-p to 240mVp-p depending on voltage
- Voltage Tolerance: +6.0% to 2.0% depending on model
- Efficiency: up to 88%
- No Load Power Consumption: <0.1W
- Temperature Range: -25°C to +60°C
- Certifications: UL, TUV, EN60601-1
- Protection: Short circuit, overload, over voltage
- Dimensions: 79 x 54 x 33 mm
- Housing: Fully enclosed plastic case
Buy the Buy Reliable Medical Power Supply Part Number GSM25E18P1J Online
Purchase the GSM25E18P1J medical power adapter online today to ensure your healthcare devices operate safely and efficiently. This 25W wall-mounted power supply features universal input voltage from 80VAC to 264VAC, high efficiency up to 88%, and ultra-low leakage current below 50A, making it suitable for various portable and medical applications such as blood pressure monitors, nebulizers, and inhalers. With comprehensive safety approvals including UL and TUV, proven durability, and a 3-year warranty, this device guarantees reliable performance and compliance with international standards. Order now for quick delivery and peace of mind.
Buy the GSM25E18P1J medical power adapter now and experience unmatched reliability, efficiency, and safety for your critical healthcare devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM25E18P1J?
You can click on the BUY or RFQ button to purchase GSM25E18P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM25E18P1J?
You can download the GSM25E18P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM25E18P1J?
MEAN WELL
