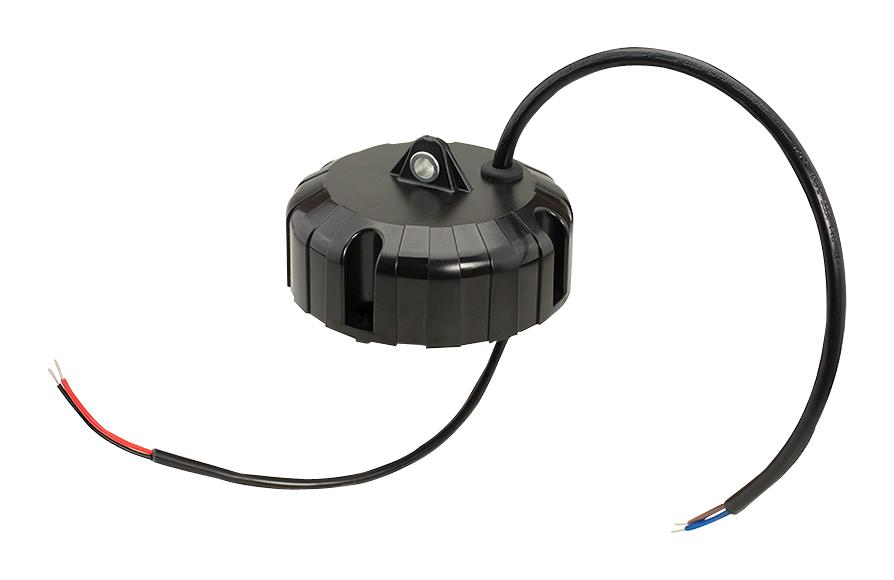

MEAN WELL HBG601400 Constant Current LED Driver
The HBG-60 series is a 60W AC/DC constant current LED driver with a circular plastic housing, operating from 90 to 295VAC. It features high efficiency up to 90%, fanless design, and an extended lifetime exceeding 50,000 hours. Suitable for diverse lighting applications such as LED bay, stage, spot, and down lighting, it offers rated currents between 1050mA and 2100mA, with compact dimensions of 110mm by 60.5mm. It is compliant with safety standards and designed for reliable operation in temperatures from -40°C to +85°C, with built-in protections and excellent power quality.
MEAN WELL HBG601400 Constant Current LED Driver Specifications:
- Rated Power: 57.75W to 60.9W
- Rated Current: 1050mA to 2100mA
- Output Voltage: 19V to 55V depending on model
- Operating Voltage Range: 90-295VAC
- Efficiency: up to 90%
- Power Factor: >0.97 / 115VAC, >0.95 / 230VAC, >0.9 / 277VAC
- Total Harmonic Distortion: <20%
- Max Case Temperature: +85°C
- Operating Temperature: -40°C to +85°C
- Dimensions: 110mm x 60.5mm (D x H)
- Input Frequency: 47-63Hz
- Protection: Over current, over temperature, short circuit, and overload
- Safety Certifications: UL, CSA, ENEC, EAC, CB
- Weight: Approx. 0.5kg per unit
Buy the MEAN WELL Series HBG 60W LED Driver: HBG601400
Secure your MEAN WELL Series HBG 60W LED Driver online now and benefit from a reliable, energy-efficient power solution suitable for various LED lighting setups. With a compact circular design, high efficiency up to 90%, and a lifespan exceeding 50,000 hours, this driver delivers consistent performance in diverse environments. Easy to install and compliant with industry safety standards, it is ideal for LED bay, stage, spot, and down lighting. Purchase today to enhance your lighting system's performance with a trusted brand manufacturer.
Order your MEAN WELL Series HBG 60W LED Driver today and ensure reliable, high-efficiency performance for your lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL HBG601400?
You can click on the BUY or RFQ button to purchase HBG601400 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HBG601400?
You can download the HBG601400 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HBG601400?
MEAN WELL
