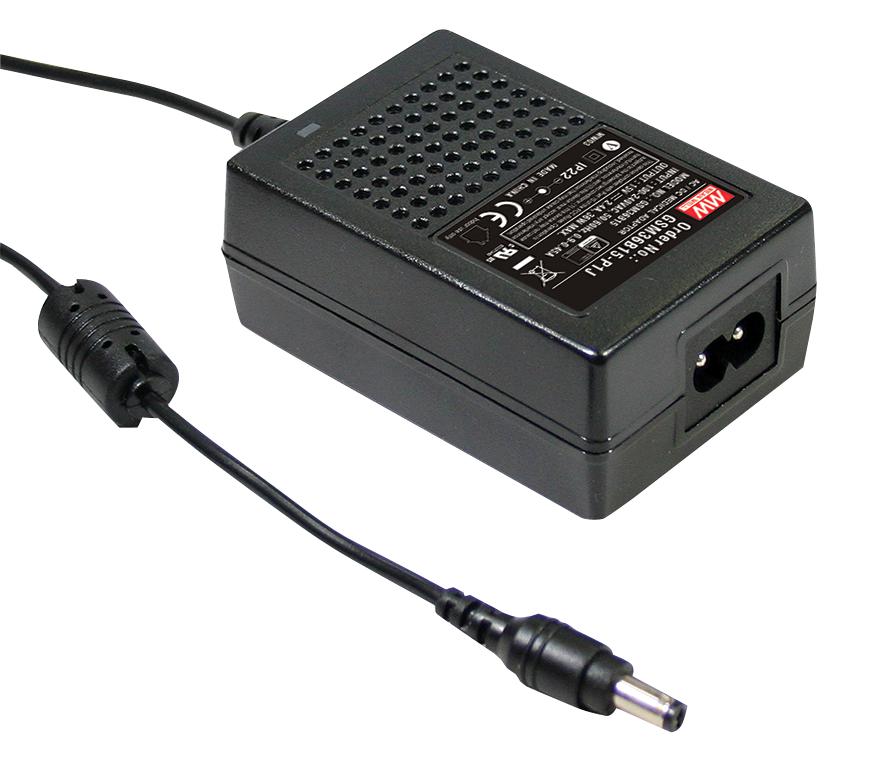

MEAN WELL GSM36B18P1J Medical Power Adapter
The GSM36B series is a highly reliable, medical-grade 36W power adaptor designed for portable and bedside medical devices. It features universal AC input (80VAC-264VAC), high efficiency up to 88%, and ultra-low leakage current below 50μA, meeting international medical safety standards (2 x MOPP). The fully enclosed plastic case provides double insulation and protection against electrical shock. It supports various output voltages from 5VDC to 48VDC, suitable for equipment like blood glucose meters, infusion pumps, and respiratory devices. The adaptor incorporates protections against short circuit, overload, and overvoltage, with a 3-year warranty and compliance with global safety and EMC standards.
MEAN WELL GSM36B18P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC
- Output Power: 36W
- Output Voltage Options: 5V, 7V, 9V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 4A, 3A, 2.44A, 2A, 1.58A, 0.75A depending on model
- Ripple & Noise: Up to 240mVp-p
- Voltage Tolerance: ±2%-±5%
- Efficiency: Up to 88%
- No Load Power Consumption: <0.1W
- Operating Temperature: -25°C to +60°C
- Protection: Short circuit, overload, overvoltage
- Safety: UL60601-1, EN60601-1 certified, 2 x MOPP isolation
- Case Material: Flame retardant plastic (94V-0), fully enclosed
- Dimensions: 79mm x 54mm x 33mm
- Weight: 235g
- Certifications: UL, TUV, CB, EN60601-1
- Wiring: IEC320-C8 inlet, optional lock type plug
Buy the Buy Medical Equipment Power Supply Part Number GSM36B18 Online
Enhance your medical equipment with the GSM36B18 power adaptor, offering 36W output, universal input voltage, high efficiency up to 88%, and low leakage current below 50μA. Designed specifically for portable and bedside devices, it ensures safety, reliability, and compliance with international standards. Its durable flame-retardant plastic case, multiple protections, and extensive certifications make it a perfect choice for medical professionals. Purchase online today to guarantee the power stability and safety your medical devices require, backed by a 3-year warranty.
Buy the GSM36B18 medical adaptor now and ensure reliable power for your clinical devices with high efficiency and safety compliance.
Frequently Asked Questions
Where can I buy MEAN WELL GSM36B18P1J?
You can click on the BUY or RFQ button to purchase GSM36B18P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM36B18P1J?
You can download the GSM36B18P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM36B18P1J?
MEAN WELL
