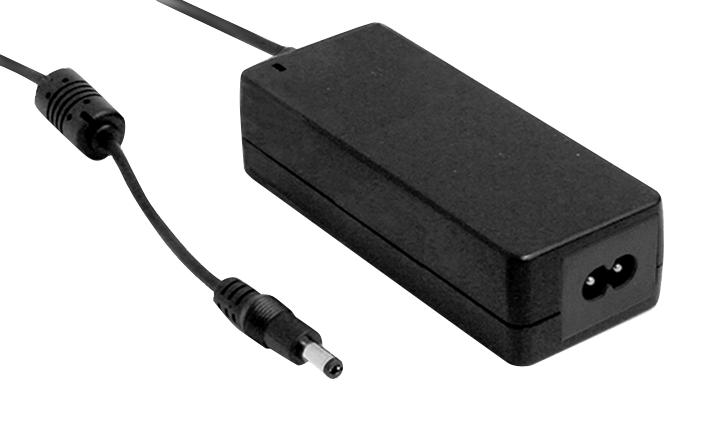

MEAN WELL GSM40B15P1J Medical Power Adapter
GSM40B series is a high-reliability, medical-grade 40W power adapter designed for various medical devices. Featuring a universal AC input range from 80VAC to 264VAC, it offers multiple output voltages from 5VDC to 48VDC. The adapter meets international safety standards (2*MOPP), ensuring safety with UL, TUV, and other certifications. Its high efficiency of up to 91%, ultra-low leakage current below 50μA, and energy-saving design comply with global energy efficiency directives. Suitable for medical equipment requiring double insulation and low EMI, it has a robust construction, fanless operation, and a 3-year warranty, making it ideal for medical monitors, portable hemodialysis, and other critical medical devices.
MEAN WELL GSM40B15P1J Medical Power Adapter Specifications:
- Input Voltage: 80VAC to 264VAC, 47-63Hz
- Output Power: 40W
- Output Voltage Options: 5V, 7.5V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 5A (5V), 3.348A (7.5V), 2.67A (12V), 2.228A (15V), 1.67A (18V), 0.84A (24V), 0.84A (48V)
- Efficiency: Up to 91%
- Leakage Current: <50μA
- Ripple & Noise: Max 150-240mVp-p depending on model
- Voltage Tolerance: ±3-5% depending on model
- Working Temperature: -30°C to +60°C
- Protection: Short circuit, Overload, Over-voltage, Over-temperature
- Isolation Level: 2xMOPP (medical safety)
- Certifications: UL, TUV, EN60601-1, US and EU EMC, RoHS compliant
- Dimensions: 125*50*31.5 mm
Buy the Buy Medical Power Supply Part Number GSM40B15P1J Online
Purchase the GSM40B series medical power adapter online today to ensure your medical devices operate with safety, high efficiency, and dependability. Designed for critical applications like monitors, portable dialysis, and breath machines, this adapter offers multiple voltage options from 5V to 48V, with an efficiency up to 91% and ultra-low leakage current. The robust, fully enclosed plastic case, international safety approvals, and 3-year warranty make it an ideal choice for healthcare facilities seeking compliant, durable power solutions. Buy now to secure reliable, energy-efficient power for your vital medical equipment.
Get GSM40B15P1J today—built for medical safety, high efficiency, and reliable power for critical healthcare applications.
Frequently Asked Questions
Where can I buy MEAN WELL GSM40B15P1J?
You can click on the BUY or RFQ button to purchase GSM40B15P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM40B15P1J?
You can download the GSM40B15P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM40B15P1J?
MEAN WELL
