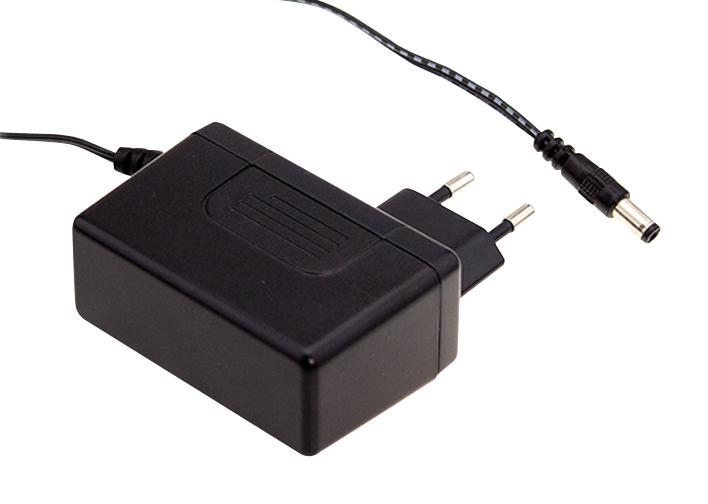

MEAN WELL GSM60E24P1J Medical Power Adapter
The GSM60E24P1J is a 60W ultra-slim wall-mounted medical power adaptor designed for medical devices, with an output voltage of 24VDC and rated current of 2.5A. Compliant with international safety standards including EN60601-1 and EN60601-1-11, it features low leakage current (<100μA), high efficiency up to 90%, and energy-saving no-load power below 0.15W. The fully enclosed plastic case offers protection against electric hazards. It supports wide input voltage from 80VAC to 264VAC, operates in temperatures from -30°C to +70°C, and incorporates protections for short circuits, overloads, and over-voltage, making it ideal for portable and bedside medical equipment.
MEAN WELL GSM60E24P1J Medical Power Adapter Specifications:
- Output Voltage: 24VDC
- Rated Current: 2.5A
- Rated Power: 60W
- Input Voltage Range: 80VAC to 264VAC
- Efficiency: Up to 90%
- Leakage Current: <100μA
- No-load Power Consumption: <0.15W
- Operating Temperature: -30°C to +70°C
- Protections: Short circuit, Overload, Over voltage
- Enclosure: Fully enclosed plastic case
- Safety Standards: EN60601-1, EN60601-1-11
- Isolation Level: 2 x MOPP
- Humidity: 20% to 90% RH non-condensing
- Dimensions: 75.5mm x 32mm x 47.5mm
- Input Plug: European 2-pin, P1J type
- Certificates: TUV, EN60601-1, EN60601-1-11, EAC
- Warranty: 3 years
Buy the Mean Well Series GSM Series Medical Power Supply: GSM60E24P1J
Get the reliable and energy-efficient GSM60E24P1J medical power adapter online today. This 60W, 24VDC output device features high efficiency, low leakage current, and comprehensive safety protections. Its ultra-slim design fits easily into portable and bedside medical equipment, meeting international standards like EN60601-1. With a wide input range from 80VAC to 264VAC and operating temperatures from -30°C to +70°C, it ensures stable performance in critical healthcare settings. Purchase online for quick delivery and trusted quality.
Order your Mean Well Series GSM60E24P1J today and ensure reliable power with advanced safety features for your medical devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM60E24P1J?
You can click on the BUY or RFQ button to purchase GSM60E24P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM60E24P1J?
You can download the GSM60E24P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM60E24P1J?
MEAN WELL
