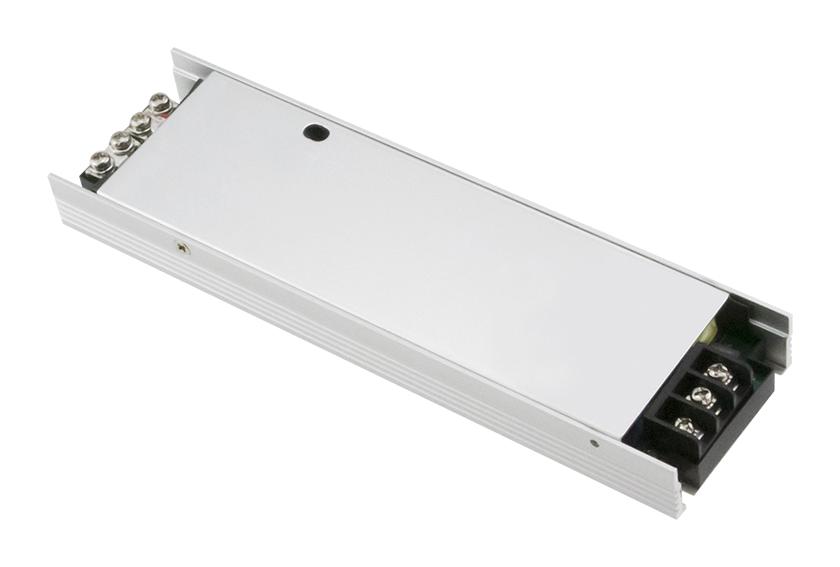

MEAN WELL LSP160R33T Slim Power Supply
The LSP-160 series is a high-efficiency 160W slim power supply designed for industrial automation and control systems. It features a low profile of 20mm, fanless operation for noise-free environments, and robust protections including short circuit, over load, over voltage, and over temperature. The series supports wide input voltage range 100-264VAC, with multiple output options such as 3.3V, 4.2V, 5V, 12V, 24V, 36V, and 48V, suitable for harsh industrial environments. Its compact size, high reliability, and compliance with international safety standards ensure versatile application in automation, medical, control, and household appliances.
MEAN WELL LSP160R33T Slim Power Supply Specifications:
- Dimensions: 194*55*20mm (L*W*H)
- Input Voltage Range: 100~264VAC, 47-63Hz
- Output Voltages: 3.3V, 4.2V, 5V, 12V, 24V, 36V, 48V
- Rated Power: 160W
- Efficiency: Up to 93.5%
- Ripple & Noise: Max. 200-300mVp-p depending on model
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overload, over voltage, over temperature
- Isolation Voltage: 3.75kVAC (OIP), 2kVAC (P-FG)
- Dimensions: 194mm x 55mm x 20mm
- Vibration Resistance: 5G, 10-500Hz
- Safety Standards: UL62368, TUV EN62368, GB4943
- MTBF: 699,540 hours (minimum)
Buy the Mean Well 160W Slim Power Supply – Reliable Industrial Power Solution for Automation
Enhance your industrial automation systems with the 160W slim power supply from Mean Well. Featuring fanless design, high efficiency up to 93.5%, and wide input voltage range, it ensures reliable performance in harsh environments. With multiple output options, complete protection features, and compliance with international safety standards, this power supply is ideal for demanding industrial, automation, and household applications. Purchase online now for quick delivery and excellent customer support, ensuring your equipment stays powered reliably and efficiently.
Buy Mean Well 160W Slim Power Supply now and experience unmatched reliability and high efficiency for industrial automation and control applications.
Frequently Asked Questions
Where can I buy MEAN WELL LSP160R33T?
You can click on the BUY or RFQ button to purchase LSP160R33T from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part LSP160R33T?
You can download the LSP160R33T datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of LSP160R33T?
MEAN WELL
