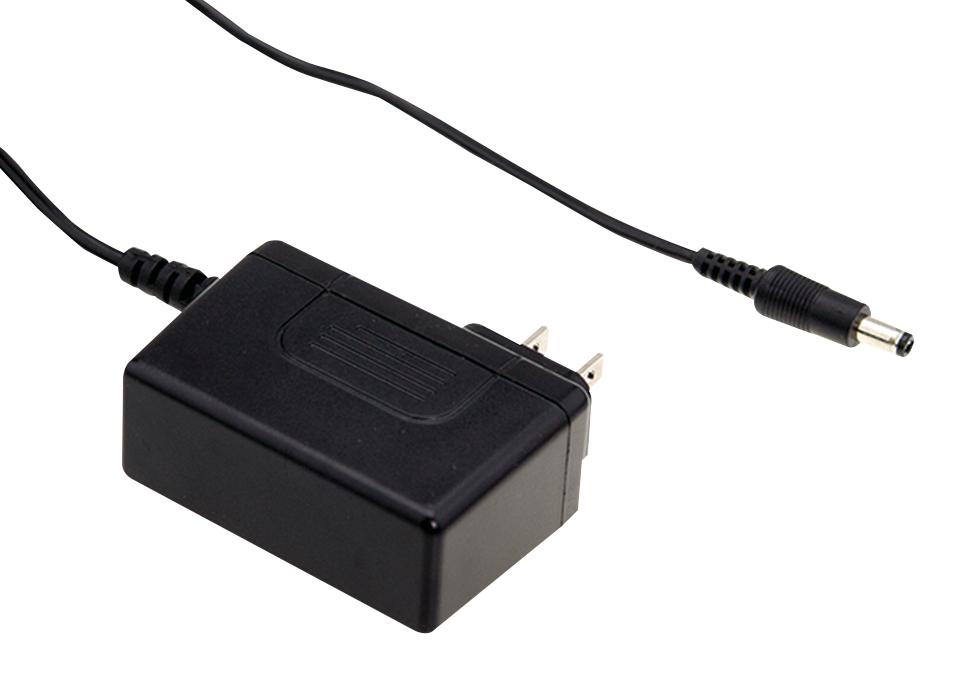

MEAN WELL GSM60U15P1J Medical Power Adapter
GSM60U15P1J is a 60W ultra slim, wall-mounted medical power adapter designed for reliable and efficient operation in healthcare settings. It complies with international medical safety standards (2×MOPP) with ultra-low leakage current (<100µA), making it suitable for direct contact with patients. The adapter features high energy efficiency up to 90%, low no-load consumption below 0.15W, and a broad input voltage range of 80VAC to 264VAC. Equipped with protections including short circuit, overload, and overvoltage, it is housed in a flame-retardant plastic case, ensuring safety and durability for medical devices requiring output voltages from 5V to 48V.
MEAN WELL GSM60U15P1J Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC to 264VAC
- Output Voltage Options: 5V, 7.5V, 12V, 18V, 24V, 48V
- Rated Power: 49.5W
- Max Current: 5.5A (for 12V), 6A (for 5V, 7.5V)
- Ripple & Noise (max.): 100mVp-p
- Voltage Tolerance: ±5.0%
- Efficiency: Up to 90%
- No-load Power Consumption: <0.15W
- Working Temperature Range: -30°C to +70°C
- Safety Standard: ANSI/AAMI ES60601-1, ES60601-1-11
- Isolation Level: 2× MOPP (patient contact safety)
- Dimensions: 75.5×32×47.5mm (L×W×H)
- Protections: Short circuit, Overload, Over voltage
- Housing: Fully enclosed plastic case with flame retardant material
- Certification: UL, CSA, EN approvals
Buy the Mean Well GSM60U15P1J – Reliable Medical Power Adapter for Medical Devices
Secure your healthcare projects with the reliable and energy-efficient Mean Well GSM60U15P1J medical power adapter. Designed for medical electronic devices, it features ultra-low leakage current, broad input voltage range, high efficiency, and comprehensive protections. Perfectly suited for devices like blood glucose meters, infusion pumps, and ventilators, this slim wall-mounted adaptor offers certification for safety standards and robust construction. Purchase online today to enhance safety and performance in medical environments with a trusted power supply solution.
Order your Mean Well GSM60U15P1J medical power adapter today and ensure reliable, energy-efficient power supply for your medical electronic devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM60U15P1J?
You can click on the BUY or RFQ button to purchase GSM60U15P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM60U15P1J?
You can download the GSM60U15P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM60U15P1J?
MEAN WELL
