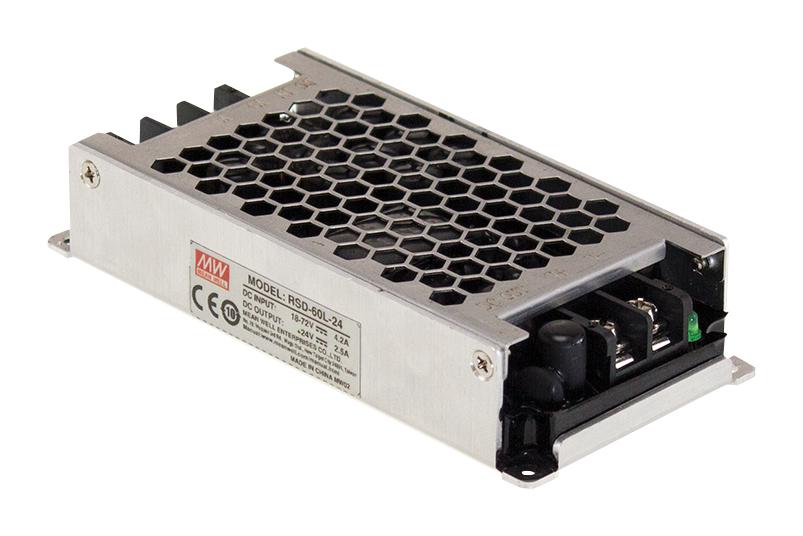

MEAN WELL RSD60L24 Railway Power Converter
The RSD-60L-24 is a highly reliable 60W railway DC-DC converter designed to operate in harsh environments including high vibration, dust, and extreme temperatures from -40°C to +70°C without derating. Compliant with EN50155 and EN45545-2 standards, it features a 4:1 wide input voltage range of 40~160VDC, multiple output options including 24V, and robust protections such as overload, overvoltage, and short circuit. Its compact, semi-potted design ensures excellent EMC performance, making it ideal for railway, tram, bus, and industrial control systems requiring stable power in demanding conditions.
MEAN WELL RSD60L24 Railway Power Converter Specifications:
- Input Voltage Range: 40~160VDC
- Output Voltage Options: 3.3V, 5V, 12V, 24V
- Rated Power: 60W
- Maximum Output Current: 12A for 3.3V/5V, 5A for 12V, 2.5A for 24V
- Ripple & Noise: 50-100mVp-p depending on model
- Voltage Tolerance: ±2%
- Line Regulation: 0.2-0.5%
- Load Regulation: 0.2-0.5%
- Efficiency: 86.5% to 93%
- Operating Temperature: -40°C to +70°C (no derating at full load with external cooling, up to 55°C without)
- Protection: Short circuit, Overload (105-135%), Over voltage (shutdown, auto-recovery), Reverse Polarity (MOSFET protection)
- Isolation Voltage: 4000VDC IO isolation
- Dimensions: 128mm x 60mm x 25mm
- Vibration: 10-500Hz, 5G
- Humidity: 5-95% RH non-condensing
- Standards: EN50155, EN45545-2, IEC61373, IEC60950-1
- MTBF: 593.8K hours
- Housing: Semi-potted with cooling by free air convection
Buy the Mean Well Series RSD: 60W Railway DC-DC Converter
Purchase the reliable RSD-60L-24 railway DC-DC converter online today to ensure stable power supply in demanding transportation environments. Designed to meet strict EN50155 and EN45545-2 standards, it offers wide input range, multiple output options, and excellent EMI performance. Its robust protections against short circuit, overload, and overvoltage, along with a compact semi-potted design, make it ideal for railway, tram, bus, and industrial control systems. Order now for long-lasting performance and peace of mind in harsh conditions.
Get Mean Well RSD-60L-24 today—built for high reliability and extreme environmental resilience in transportation applications.
Frequently Asked Questions
Where can I buy MEAN WELL RSD60L24?
You can click on the BUY or RFQ button to purchase RSD60L24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSD60L24?
You can download the RSD60L24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSD60L24?
MEAN WELL
