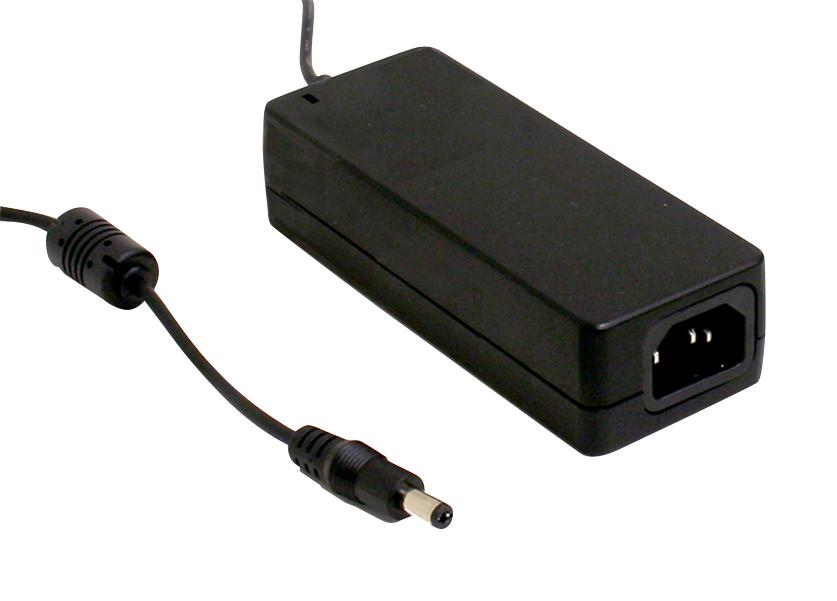

MEAN WELL GSM90A24P1M Medical Power Adapter
GSM90A24P1M is a high-reliability 90W medical power adapter designed for medical devices requiring stable, efficient power supply. Its universal AC input ranges from 80VAC to 264VAC, meeting international safety standards with 2 x MOPP isolation and ultra-low leakage current below 100uA, ensuring patient safety. The adapter features high efficiency up to 91%, a fanless design suitable for operating temperatures from -30°C to +70°C, and complies with multiple energy regulations. It includes protections against overvoltage, overload, and temperature, making it ideal for medical monitors, portable hemodialysis machines, and other critical healthcare equipment.
MEAN WELL GSM90A24P1M Medical Power Adapter Specifications:
- Input Voltage: 80 ~ 264VAC
- Output Voltage: 24VDC
- Rated Power: 90W
- Rated Current: 3.75A
- Ripple & Noise: 200mVp-p
- Voltage Tolerance: ±3.0%
- Line Regulation: ±1.0%
- Load Regulation: ±3.0%
- Efficiency: 91%
- Leakage Current: < 100A / 264VAC
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 145*60*32mm
- Certifications: UL, TUV EN60601-1, EN55011, IEC60601-1
Buy the Medical Series 90W Power Adapter: GSM90A24P1M
Purchase the GSM90A24P1M high-reliability medical power adapter online today to ensure your healthcare devices operate safely and efficiently. Designed with an ultra-low leakage current below 100uA, it complies with international safety standards including 2 x MOPP isolation, making it perfect for patient-contact medical equipment. The adapter features high efficiency up to 91%, a fanless construction for silent operation, and a broad input voltage range of 80 to 264VAC. Its robust build supports temperatures from -30°C to +70°C, ensuring reliable performance in demanding medical environments. This product guarantees safe, energy-efficient, and durable power supply for various critical healthcare devices.
Get GSM90A24P1M today—built for medical precision and long-lasting durability in healthcare applications.
Frequently Asked Questions
Where can I buy MEAN WELL GSM90A24P1M?
You can click on the BUY or RFQ button to purchase GSM90A24P1M from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM90A24P1M?
You can download the GSM90A24P1M datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM90A24P1M?
MEAN WELL
