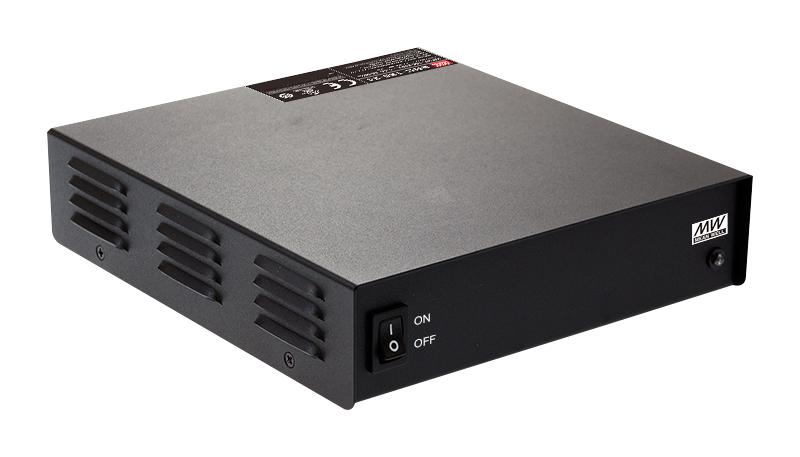

MEAN WELL ENP18012 power supply
The ENP-180 series is a 180W desktop power supply designed for communication applications like land mobile radios and surveillance systems. It features universal AC input, high efficiency Level VI energy compliance, and a rugged mechanical build. With operating temperatures from -30°C to +70°C and a fanless convection cooling design, it provides reliable power delivery with protections for overvoltage, overload, short circuit, and overtemperature. Its compact size and durable design make it ideal for telecom, security, and industrial communication setups.
MEAN WELL ENP18012 power supply Specifications:
- DC Voltage: 13.8V, 25.2V, 55.2V
- Rated Current: 13A, 6.5A, 3.34A
- Rated Power: 179W, 179W, 1820W
- Peak Power: 225W, 226W, 418W
- Ripple & Noise: 150mVp-p, 150mVp-p, 2350mVp-p
- Voltage Adjustment Range: 11.5~15V, 23.5~30V, 47.5~58.8V
- Voltage Tolerance: ±1.0%
- Line Regulation: ±0.5%
- Load Regulation: ±1.0%, ±0.5%
- Setup Time: 1000ms, 100ms at full load
- Hold Up Time: 20ms
- Input Voltage Range: 90~264VAC, 127~370VDC
- Frequency Range: 47~63Hz
- Efficiency: 91%, 93.5%, 94%
- AC Current: 1.5A, 0.95A at 230VAC
- Inrush Current: 70A at 230VAC
- Leakage Current: <3.5mA/240VAC
- No Load Power Consumption: <0.15W
- Protection: Overvoltage, overload, over temperature, short circuit
- Operating Temp: -30°C~+70°C
- Storage Temp: -40°C~+85°C
- Dimensions: 192 x 45.5 x 78 mm
- Certifications: IEC60950-1, UL60950-1, TUV, CB, CE
- Vibration: 10~500Hz, 26m/s² for 10min/axis
- MTBF: 470,600 hrs
Buy the Mean Well 180W Level VI – Reliable Power Supply for Industrial Applications
Enhance your communication and industrial setups with the 180W Level VI power supply. Featuring universal input, high efficiency, and rugged design, it guarantees reliable operation across temperatures from -30°C to +70°C. Its fanless convection cooling ensures silent, maintenance-free performance. The power supply offers comprehensive protections including overvoltage, overload, and short circuit, making it suitable for telecom, surveillance, and industrial applications. Order online now to benefit from fast delivery and professional support for your critical projects.
Order your Mean Well Series ENP-180 power supply today and ensure your communication systems operate with dependable, energy-efficient power.
