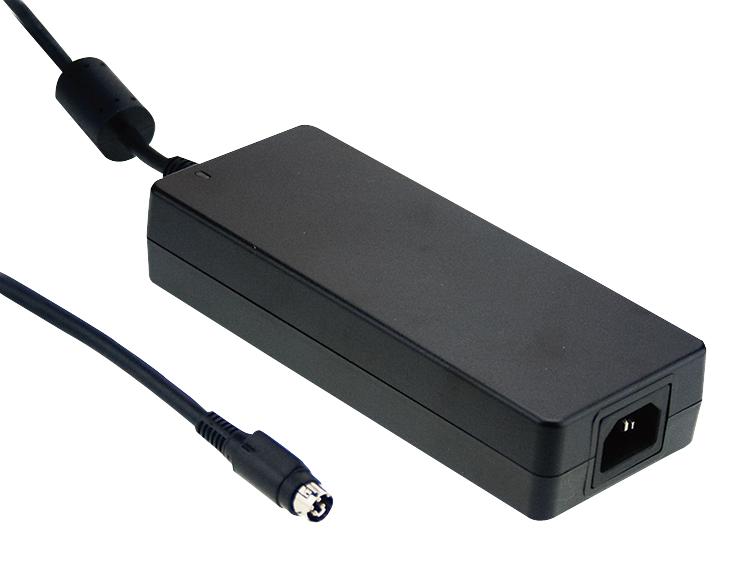

MEAN WELL GST160A36R7B Industrial Power Supply
GST160A36R7B is a high-reliability, 160W industrial-grade power adaptor designed for robust applications. It features wide input voltage from 85VAC to 264VAC, making it suitable for global use in consumer electronics, telecommunication, and industrial equipment. The power supply includes protections against short circuit, overload, over voltage, and over temperature, ensuring long-term durability. Its fanless design maintains a silent operation within -30°C to +70°C ambient temperature. Certified for international safety standards, it offers high efficiency up to 94% and low no-load power consumption below 0.15W, compliant with environmental regulations like ErP and DoE. The fully enclosed plastic case and LED indicator provide user-friendly operation, making it ideal for versatile industrial and commercial applications.
MEAN WELL GST160A36R7B Industrial Power Supply Specifications:
- Input Voltage: 85~264VAC or 120~370VDC
- Output Voltage: 36V
- Rated Power: 160W
- Rated Current: 4.44A
- Ripple & Noise: 240mVp-p
- Voltage Tolerance: ±3.0%
- Line & Load Regulation: ±1.0% / 3.0%
- Efficiency: 94%
- Protection: Short Circuit, Overload, Over Voltage, Over Temperature
- Working Temperature: -30°C to +70°C
- Storage Temperature: -20°C to +85°C
- Dimensions: 175mm x 72mm x 35mm
- Certifications: UL, CSA, TUV, CB, PSE, CCC
- Vibration: 10~500Hz, 2G, 60min along each axis
- MTBF: 236,400 hours
- Humidity: 20%~90% RH non-condensing
- Enclosure: Fully enclosed plastic case
- Protection Mode: Hiccup, Recovers automatically
Buy the Buy Universal Industrial Power Supply Part Number GST160A36R7B Online
Order the GST160A36R7B industrial power supply online today and enjoy reliable performance for demanding environments. Featuring a wide input range, high efficiency up to 94%, and comprehensive protections including over voltage and temperature shutdown, this 160W adaptor ensures continuous operation of your industrial or telecommunications systems. Its fanless, fully enclosed plastic case guarantees silent operation and durability across -30°C to +70°C. Certified to meet international safety standards, it is ideal for applications requiring energy efficiency, low no-load power consumption, and long-term dependability. Buy now for seamless integration and professional-grade power performance.
Get GST160A36R7B industrial power adaptor today—built for high reliability, efficiency, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL GST160A36R7B?
You can click on the BUY or RFQ button to purchase GST160A36R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST160A36R7B?
You can download the GST160A36R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST160A36R7B?
MEAN WELL
