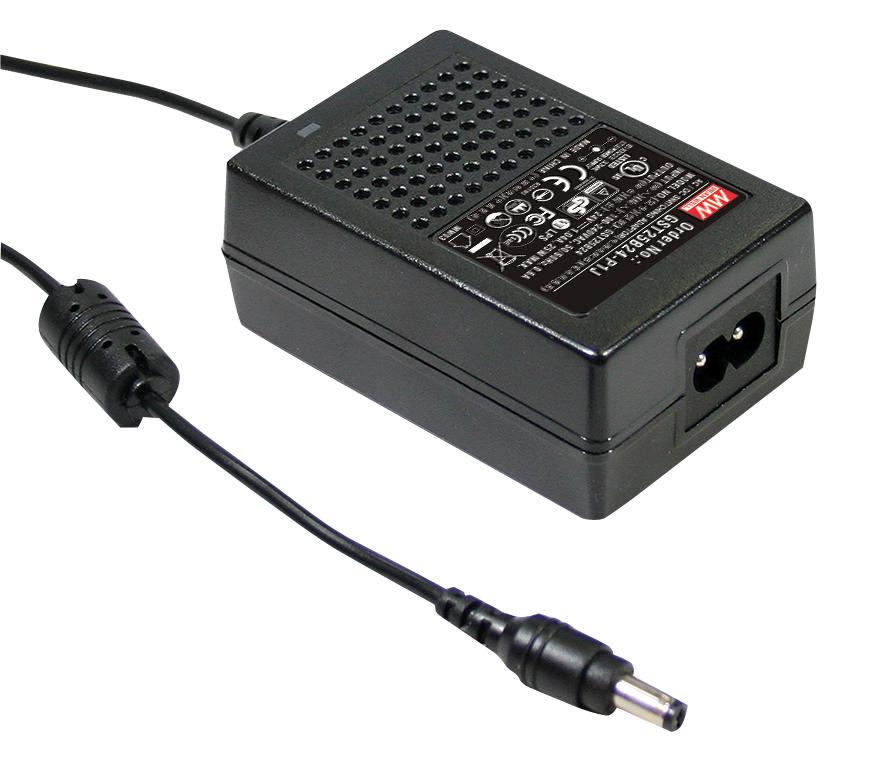

MEAN WELL GST25B24P1J Industrial Power Adapter
GST25B24P1J is a highly reliable 25W industrial power adapter featuring full-range universal AC input (85VAC to 264VAC) and multiple output voltages up to 48VDC. This Class II power supply with a compact, fully enclosed plastic case offers high efficiency (up to 89%) and low no-load power consumption below 0.075W, complying with international energy standards including EU ErP and CoC V5. Designed for industrial applications, telecommunication, and consumer electronics, it provides protection against short circuits, overloads, and overvoltage, with a working temperature up to +70°C, making it a versatile, energy-efficient, and safe power solution.
MEAN WELL GST25B24P1J Industrial Power Adapter Specifications:
- Input Voltage: 85~264VAC, 47~63Hz
- Output Voltage: 24VDC
- Rated Power: 25W
- Ripple & Noise: 240mVp-p
- Voltage Tolerance: +20%
- Line Regulation: ±1.0%
- Load Regulation: ±20%
- Efficiency (Typ.): 89%
- Working Temperature: -30°C to +70°C
- Protection: Short circuit, Overload, Over voltage (Hiccup mode)
- Safety Standards: UL60950-1, TUV EN60950-1, CCC GB4943, others
- Dimensions: 79.5 x 33 mm (L x W)
- Leakage Current (max.): 0.25mA/240VAC
- Storage Temp.: -40°C to +85°C
- Humidity: 20% to 90% RH non-condensing
- Vibration: 10-500Hz, 2G
- MTBF: at least 500,000 hours
Buy the Buy MEAN WELL GST25B24P1J Industrial Power Supply Part Number GST25B24P1J Online
Get the MEAN WELL GST25B24P1J, a 25W industrial power adapter with universal AC input, high efficiency, low load power consumption, and multiple protections. This reliable, compact device meets international safety standards, providing a safe, energy-saving power solution for industrial, telecommunication, and consumer electronic applications. Designed to operate reliably at temperatures up to +70°C, it offers low ripple noise, robust overvoltage and short circuit protections, and is UL, TUV, and CE certified. Perfect for demanding industrial environments requiring dependable power supplies.
Buy MEAN WELL GST25B24P1J now and experience unmatched reliability and energy-efficient performance for your industrial power needs.
Frequently Asked Questions
Where can I buy MEAN WELL GST25B24P1J?
You can click on the BUY or RFQ button to purchase GST25B24P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST25B24P1J?
You can download the GST25B24P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST25B24P1J?
MEAN WELL
