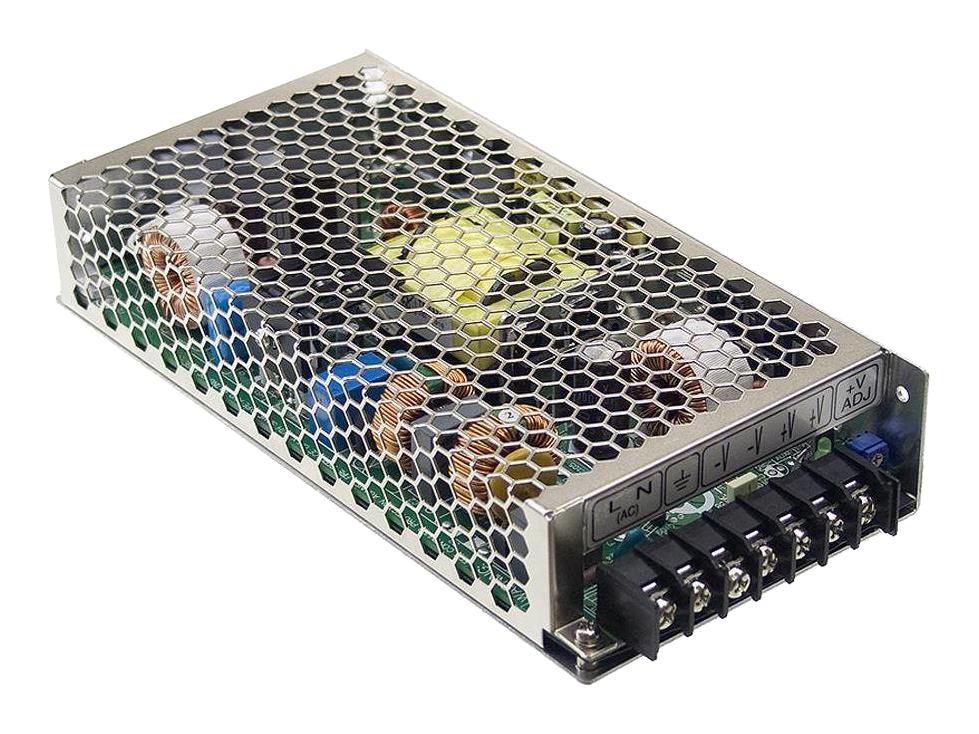

MEAN WELL HRP20048 Industrial Power Supply
The HRP-200-48 series is a high-efficiency 200W single output power supply with active power factor correction (PFC), achieved PF>0.95. It features universal AC input, a low profile of 38mm, and surge withstand capabilities up to 300VAC for 5 seconds. The supply offers multiple protections including short circuit, overload, over voltage, and over temperature. It operates efficiently up to 89%, with a working temperature range of -40°C to +70°C, and is ideal for industrial, automation, and control applications requiring stable, reliable power source with high efficiency.
MEAN WELL HRP20048 Industrial Power Supply Specifications:
- Input Voltage: 85~264VAC, 120~370VDC
- Output Power: 200W
- Output Voltage: 3.3V, 5V, 7.5V, 12V, 15V, 24V, 36V, 48V
- Rated Current: 40A at 3.3V, 35A at 5V, 26.78A at 7.5V, 16.7A at 12V, 13.48A at 15V, 8.44A at 24V, 5.7A at 36V, 4.34A at 48V
- Efficiency: up to 89%
- Ripple & Noise: max. 250mVp-p depending on model
- Dimensions: 199*98*38mm (L*W*H)
- Operating Temperature: -40°C to +70°C
- Cooling: Free air convection
- Protections: Short circuit, Overload (105-135%), Over voltage, Over temperature
- Safety Standards: UL62368-1, TUV EN62368-1
- MTBF: 209.4K hours min.
- Vibration: 10~500Hz, 5G
Buy the Mean Well Series HRP 200W Power Supply: HRP20048
Discover the reliable and efficient HRP series 200W power supply, designed for industrial automation, control systems, and manufacturing environments. Featuring active PFC for power quality, universal input for flexibility, and multiple protections including short circuit, overload, over voltage, and over temperature. Its compact 38mm profile ensures easy installation in tight spaces. With an operating temperature range of -40°C to +70°C and high MTBF, this power supply guarantees consistent performance, reducing downtime and maintenance costs. Purchase online now for fast delivery and peace of mind in your critical applications.
Order your Mean Well Series HRP 200W power supply today and give your industrial projects the dependable, high-efficiency power they deserve.
Frequently Asked Questions
Where can I buy MEAN WELL HRP20048?
You can click on the BUY or RFQ button to purchase HRP20048 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HRP20048?
You can download the HRP20048 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HRP20048?
MEAN WELL
