MEAN WELL GST25B48P1J Industrial Power Supply Module
The GST25B series is a high-reliability, 25W industrial power supply designed for versatile applications. This class II adapter features universal AC input from 85VAC to 264VAC, with models offering output voltages from 5VDC to 48VDC. Employing overvoltage, overload, and short-circuit protections, it ensures safe, consistent power delivery. Its efficiency reaches up to 89%, with low no-load consumption below 0.075W, complying with multiple global energy regulations. Encased in flame-retardant plastic, it is suitable for industrial and professional electronics, with certifications including UL, TUV, CSA, and others, operating reliably from -30°C to +70°C.
MEAN WELL GST25B48P1J Industrial Power Supply Module Specifications:
- Input Voltage: 85VAC to 264VAC, 47~63Hz, IEC320-C8 inlet
- Output Voltage: 5V, 12V, 15V, 18V, 24V, 28V, 48V options
- Rated Power: 20W to 25W depending on model
- Efficiency: up to 89%
- No-load Power Consumption: <0.075W
- Protection: Short circuit, Overload, Over voltage
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -40°C to +85°C
- Dimensions: 79 x 54 x 33 mm
- Certifications: UL60950-1, CE, CB, BSMI CNS14336, CCC, KC, EAC, PSE
- Housing: Fully enclosed flame-retardant plastic case
- Safety Standards: Double insulation, IEC, UL, and international safety compliance
- Working Humidity: 20% to 90% RH non-condensing
- Derating Temperature: Yes, detailed curve available
- MTBF: Over 500,000 hours at 25°C
- Additional: LED power indicator, compact design for industrial and consumer electronics applications

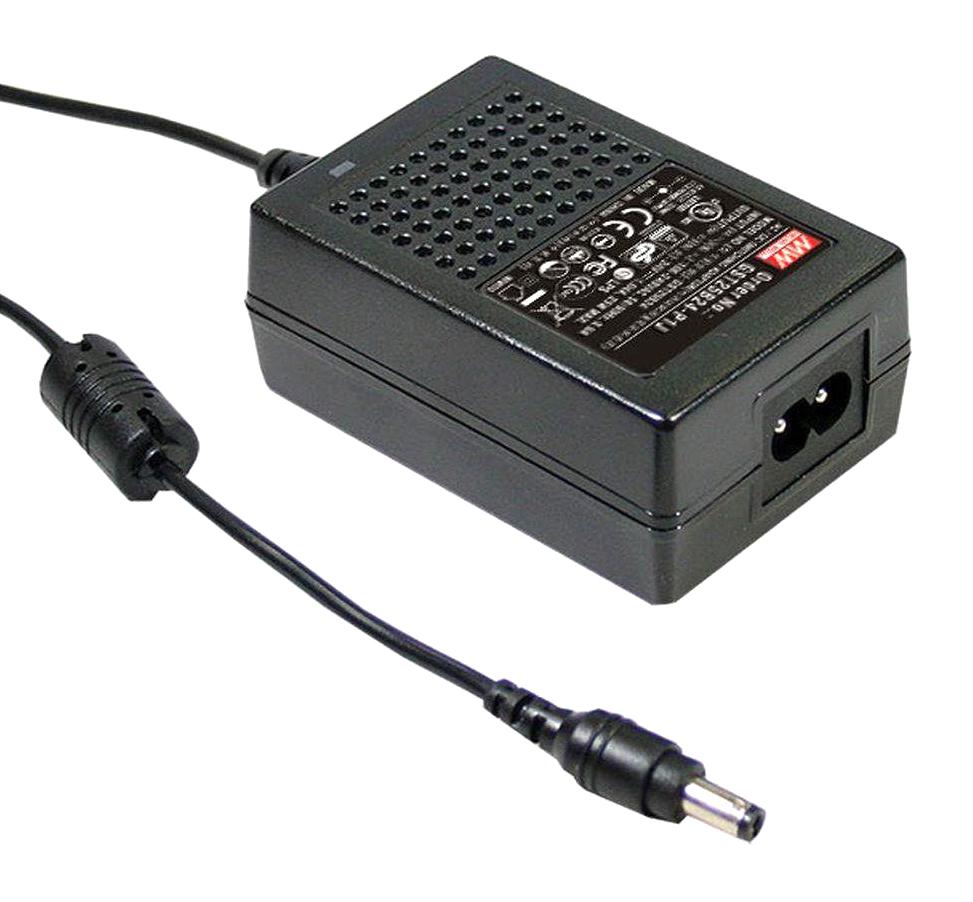

Buy the Mean Well GST25B – Reliable 25W Power Supply for Industrial Applications
Purchase the GST25B series online today to ensure your electronic devices are powered reliably and safely. Featuring universal input voltage, high efficiency up to 89%, and multiple output options from 5V to 48V, this power supply is ideal for industrial, telecommunication, and consumer electronics. Its low no-load power consumption under 0.075W, along with comprehensive protections against overvoltage, overload, and short circuits, makes it a perfect choice for demanding applications. Certified and compliant with international safety standards, it guarantees safe operation from -30°C to +70°C, backed by a 3-year warranty. Get yours now for dependable power in your projects.
Buy Mean Well GST25B series industrial power adapter now and experience unmatched reliability, efficiency, and safety in demanding environments.
Frequently Asked Questions
Where can I buy MEAN WELL GST25B48P1J?
You can click on the BUY or RFQ button to purchase GST25B48P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST25B48P1J?
You can download the GST25B48P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST25B48P1J?
MEAN WELL
