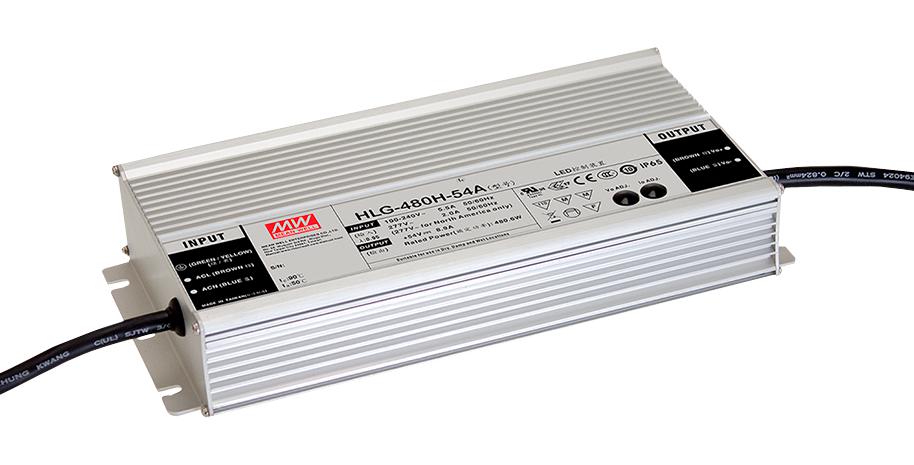

MEAN WELL HLG480H48A LED Driver
The HLG-480H series is a high-efficiency 480W LED driver capable of operating in both constant voltage and constant current modes, suitable for indoor and outdoor LED lighting applications such as stadiums, greenhouse, mining, and hazardous locations. Features include IP67/IP65 ingress protection, active PFC, adjustable output via potentiometer, 3-in-1 dimming options, and a lifespan exceeding 62,000 hours. The robust metal housing and fanless design ensure reliable performance in temperatures from -40°C to +90°C, backed by a 7-year warranty for professional lighting installations.
MEAN WELL HLG480H48A LED Driver Specifications:
- Rated Power: 480W
- Input Voltage: 90-305VAC, 127-431VDC
- Output Voltage: 24V, 30V, 36V, 42V, 48V, 54V ( selectable via model )
- Rated Current: 20A (for 24V), 16A (for 30V), 13.3A (for 36V), 11.4A (for 42V), 10A (for 48V), 9A (for 54V)
- Ripple & Noise (max): 200-350mVp-p
- Efficiency: Up to 95.5%
- Operating Temperature: -40°C to +90°C
- Ingress Protection: IP67/IP65 depending on model
- Lifetime: >62,000 hours
- Dimming: 3-in-1 (0-10VDC, PWM, resistance), Smart timer options available
- Physical Dimensions: Approximately 262mm x 125mm x 43.8mm
- Certifications: UL, CSA, ENEC, EN61000-4-2/3/4/5/6/8/11, CE, others
- Housing: Metal with class I design, fanless for quiet operation
- Protection Features: Over current, over voltage, short circuit, over temperature
Buy the Mean Well HLG-480H – Reliable LED Driver for Industrial Applications
Upgrade your lighting setup with the durable and efficient Mean Well HLG-480H LED driver. Perfect for industrial, commercial, or outdoor applications, it offers dual-mode output, adjustable voltage, and multiple dimming options. Designed with IP67/IP65 protection, it ensures reliable operation in harsh environments over 62,000 hours, backed by a 7-year warranty. Easy to install and operate, this power supply guarantees consistent brightness and performance, making it an ideal choice for sustainable, high-quality LED lighting systems for various applications.
Order your Mean Well SeriesH LG-480H LED driver today and enhance your lighting projects with dependable, high-performance power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL HLG480H48A?
You can click on the BUY or RFQ button to purchase HLG480H48A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG480H48A?
You can download the HLG480H48A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG480H48A?
MEAN WELL
