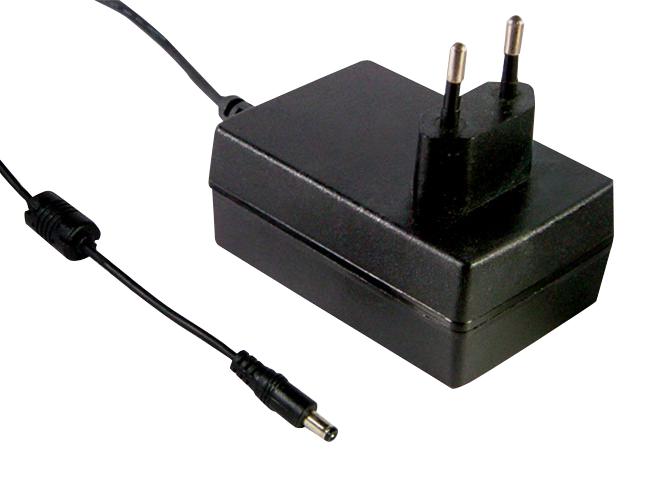

MEAN WELL GST25E48P1J Industrial Power Supply
GST25E series is a 25W industrial power supply designed for reliable operation within a wide input voltage range of 85VAC to 264VAC. This fully enclosed, Class II device features high efficiency up to 89%, low no-load power consumption below 0.075W, and compliance with EU ErP and CoC standards. It includes protections for short circuit, overload, and overvoltage, with a working temperature up to +70°C. Suitable for various industrial and consumer electronic applications, it ensures safety with double insulation and certifications for international standards. Its durable plastic case and high performance make it ideal for demanding environments.
MEAN WELL GST25E48P1J Industrial Power Supply Specifications:
- Power Output: 25W
- Input Voltage Range: 85VAC to 264VAC
- Efficiency: up to 89%
- No-load Power Consumption: < 0.075W
- Output Voltages: 5V, 7.5V, 12V, 15V, 18V, 24V, 28V, 48V
- Output Current: varies per model, e.g., 2.938A for 7.5V, 2.554A for 12V, etc.
- Ripple & Noise: 80mVp-p to 240mVp-p depending on model
- Voltage Tolerance: +5% to +30% depending on model
- Line & Load Regulation: ±1.0% to ±10% depending on parameter
- Protections: Short circuit, Overload, Overvoltage
- Working Temperature: -30°C to +70°C
- Relative Humidity: 20% to 90% RH non-condensing
- Storage Temperature: -40°C to +85°C
- Dimensions: 79.3mm x 33mm x 29mm
- Certifications: TUV EN60950-1, UL, CE, IEC
- Safety: Double insulation, withstand voltage 4242VDC
- EMC Compliance: EN55022 Class B, EN61000-3-2/3, EN61000-4-2/3/4/5/6/8/11
Buy the Mean Well GST25E3– Reliable Industrial Power Supply for Manufacturing
Order the reliable industrial power supply online today and benefit from high efficiency, low no-load power consumption, and extensive safety certifications. Designed to operate continuously up to +70°C, it ensures stable performance for manufacturing, automation, and control systems. The GST25E series features multiple output voltages from 5V to 48V, providing flexibility for a wide range of applications. Enjoy fast delivery, competitive pricing, and peace of mind with a 3-year warranty on this high-quality, certified power adapter ideal for demanding industrial environments.
Buy Mean Well GST25E48P1J now and enjoy dependable power with high efficiency, low standby consumption, and comprehensive safety features for industrial applications.
