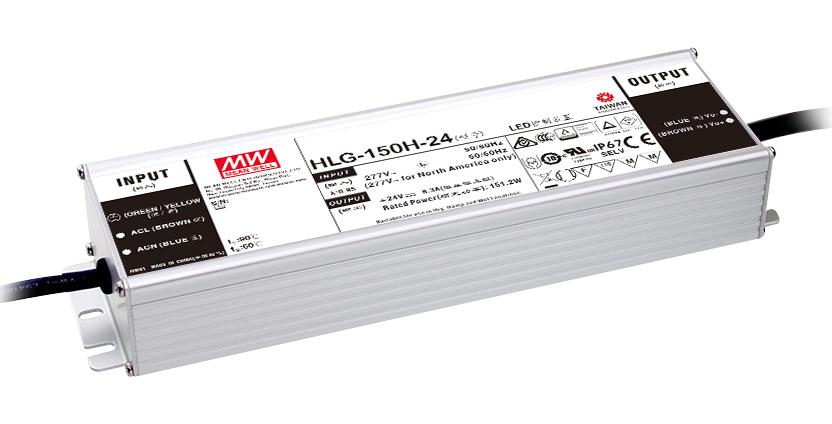

MEAN WELL HLG150H48A LED Driver
The HLG-150H series is a 150W AC/DC LED driver designed for versatile indoor and outdoor LED lighting applications. It features dual modes of constant voltage and constant current output, with models available from 12V to 54V. Operating efficiently up to 94%, it supports a wide input voltage range of 90-305VAC and offers multiple function options, including adjustable output via built-in potentiometer, 3-in-1 dimming (1-10V, PWM, resistance), and safety features for hazardous locations. Its robust metal housing with IP67/IP65 ratings allows for reliable operation in extreme temperatures from -40°C to +90°C and harsh environments, backed by a 7-year warranty and long lifespan of over 62,000 hours.
MEAN WELL HLG150H48A LED Driver Specifications:
- Power: 150W
- Input Voltage: 90-305VAC, 47-63Hz
- Output Voltage: 12V to 54V (model dependent)
- Rated Current: 6.3A to 12.5A (model dependent)
- Ripple & Noise: Max 150-200mVp-p
- Efficiency: Up to 94%
- Operating Temperature: -40°C to +90°C
- Protection: Overcurrent, overvoltage, overtemperature, short circuit, auto-recovery
- Ingress Protection: IP67/IP65 depending on model
- Applications: LED street/area lighting, high-bay, greenhouse, fishing lamps, hazardous location lighting
- Dimensions: Approximate 228mm x 68mm x 38.8mm
- Certifications: UL8750, CSA, EN/AS/NZS 61347-1, 2-13, IEC, EAC, KC, EN55032, EN61000-3-2/3
- Lifetime: Over 62,000 hours at Ta ≤80°C
- Warranty: 7 years
Buy the Mean Well 150W – Reliable LED Driver for Industrial Applications
Enhance your LED lighting installations with the high-efficiency 150W LED driver designed for versatility and durability. With features like dual mode output, adjustable voltage, and multiple dimming options including 3-in-1 dimming, this driver supports indoor and outdoor applications with IP67/IP65 ratings. Its robust metal housing and wide operating temperature range ensure long-term reliability up to 94% efficiency and a lifespan exceeding 62,000 hours. Perfect for street, high-bay, greenhouse, or hazardous location lighting, backed by a 7-year warranty, ensure optimal performance in any environment.
Buy Mean Well 150W LED driver now and experience unmatched reliability and performance for your indoor and outdoor lighting systems.
Frequently Asked Questions
Where can I buy MEAN WELL HLG150H48A?
You can click on the BUY or RFQ button to purchase HLG150H48A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG150H48A?
You can download the HLG150H48A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG150H48A?
MEAN WELL
