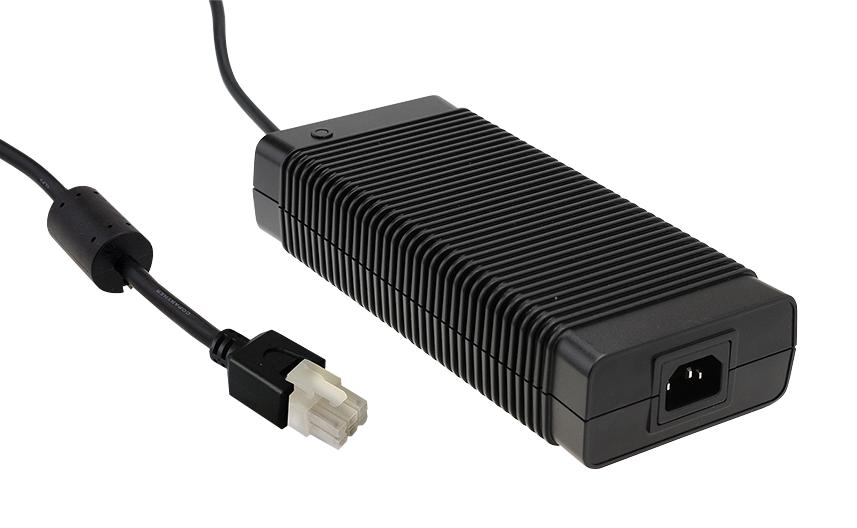

MEAN WELL GST280A12C6P Industrial Power Adapter
The GST280A series is a highly reliable, 280W industrial-grade AC-DC power adapter designed for robust applications. Featuring universal input voltage from 85 to 264VAC and high efficiency up to 94%, it minimizes energy consumption and no-load power below 0.5W for energy-saving compliance. Its fanless, fully enclosed plastic case ensures durability in industrial environments, with protections against short circuits, overcurrent, overvoltage, and temperature faults. Suitable for diverse industrial and telecommunication devices, it supports models with output voltages from 12V to 48V, meeting safety standards worldwide and delivering consistent, safe power.
MEAN WELL GST280A12C6P Industrial Power Adapter Specifications:
- Input Voltage: 85~264VAC or 120~370VDC
- Output Power: 280W
- Output Voltage Range: 12V, 18V, 20V, 24V, 48V
- Rated Current: 21A for 12V, 17A for 18V, 13A for 20V, 11.6A for 24V, 5.84A for 48V
- Ripple & Noise: 120mVp-p for 12V, 420mVp-p for 18V, 450mVp-p for 20V, 280mVp-p for 24V, 260mVp-p for 48V
- Efficiency: up to 94%
- Protections: Short circuit, Overload (105-135%), Over voltage, Over temperature
- Operating Temperature: -30°C to +70°C
- Dimension: 220*95*46mm
- Working Humidity: 20% to 90% RH non-condensing
- Safety Standards: UL, CSA, TUV, BSMI, CCC, PSE, AS/NZS
- MTBF: 181,240 hours at 25°C
- Vibration Resistance: 10-500Hz, 2G
Buy the Reliable Power Supply Series 280W AC-DC Adapter: GST280A12C6P
Purchase the GST280A12C6P industrial power adapter online today and benefit from its high efficiency, robust protections, and proven safety standards. This 280W power supply features universal input voltage ranging from 85 to 264VAC, making it suitable for diverse industrial and telecommunication applications. Its fanless, fully enclosed plastic case ensures durability and silent operation in harsh environments. Easy to install and compliant with international safety certifications, this power supply ensures reliable operation, energy efficiency, and low standby power consumption, making it an excellent choice for demanding industrial systems.
Buy GST280A12C6P now and experience unmatched reliability and performance for industrial power applications.
Frequently Asked Questions
Where can I buy MEAN WELL GST280A12C6P?
You can click on the BUY or RFQ button to purchase GST280A12C6P from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST280A12C6P?
You can download the GST280A12C6P datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST280A12C6P?
MEAN WELL
