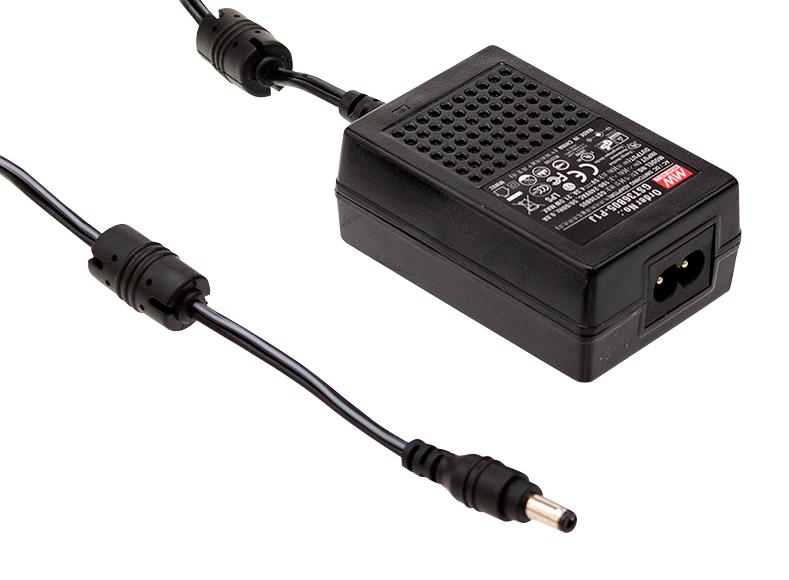

MEAN WELL GST36B12P1J Industrial Power Supply
The GST36B series is a highly reliable, 36W industrial power adapter designed for various electronic applications. It features universal input voltage ranging from 85VAC to 264VAC, with efficiency up to 90% and no load power consumption below 0.075W. The fully enclosed, flame-retardant plastic case provides safety and durability, supporting output voltages between 5VDC and 48VDC. Certified for international safety standards, this power supply offers protections against short circuits, overloads, and overvoltage, making it ideal for industrial, telecommunication, and consumer electronic devices operating in high temperature environments up to +70°C.
MEAN WELL GST36B12P1J Industrial Power Supply Specifications:
- Input Voltage Range: 85VAC to 264VAC
- Output Power: 36W (max)
- Output Voltages: 5VDC, 12VDC, 24VDC, 48VDC
- Rated Currents: 3A, 1.5A, 0.75A depending on model
- Efficiency: up to 90%
- Ripple & Noise: 90mVp-p to 240mVp-p depending on model
- Voltage Tolerance: ±3.0% to ±2.0%
- Line Regulation: ±1.0%
- Load Regulation: ±3.0% to ±2.0%
- Operating Temperature: -30°C to +70°C
- Protection Features: Short circuit, Overload, Overvoltage in Hiccup mode
- Certifications: UL, CSA, TUV, BSMI, CCC, AS/NZS
- Dimensions: 79 x 54 x 33 mm
- Weight: 203g per unit
- Safety Class: II power (no earth pin)
- Efficiency Level: VI compliant
- Connections: IEC320-C8 inlet, optional custom connectors
- Enclosure: Fully enclosed plastic case with flame retardant material
- Environmental: Storage temperature -40°C to +85°C, Humidity 10% to 95%
- Vibration: 10-500Hz at 2G
- MTBF: 692,300 hours
Buy the Buy Mean Well 36W Power Supply Part Number GST36B12P1J Online
Get the reliable and high-efficiency industrial power supply by ordering the GST36B12P1J online today. Designed for demanding applications, it offers universal input voltage and multiple output options from 5VDC to 48VDC, with protections against short circuit, overload, and overvoltage. Its flame-retardant enclosed case ensures safety and durability in high-temperature environments up to +70°C. Certified according to international safety standards, this power adapter is ideal for industrial, telecommunication, and consumer electronic devices, providing consistent performance and peace of mind.
Order your Mean Well SeriesGST36B12P1J today and ensure reliable, efficient power for your industrial or electronic projects.
