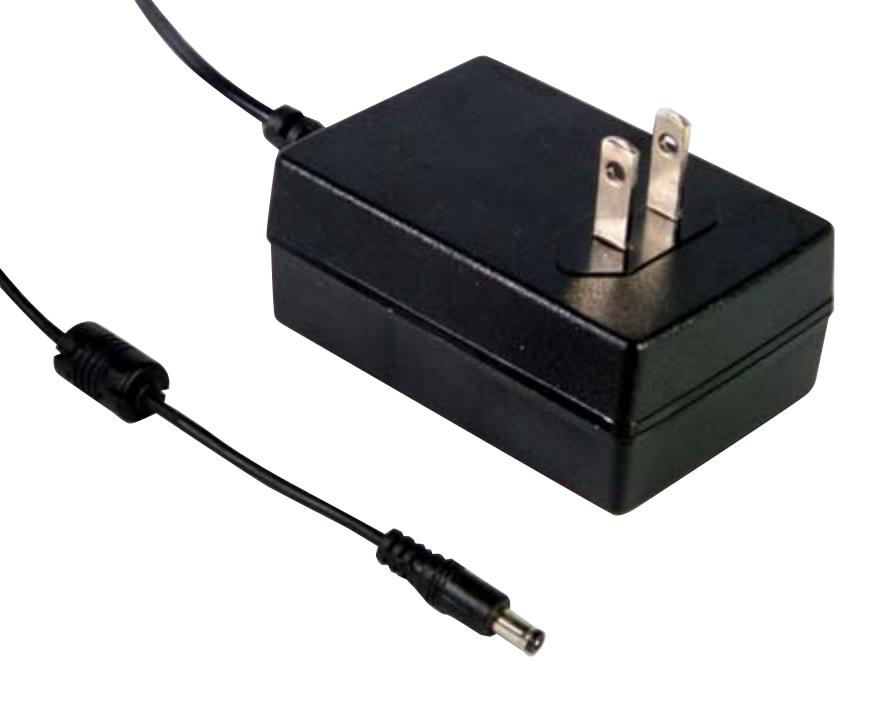

MEAN WELL GST36U05P1J Industrial Power Adapter
The GST36U series is a highly reliable, 36W industrial power adaptor with global safety certifications, supporting universal AC input (85-264VAC) and output voltages from 5V to 48V. It features high efficiency up to 90%, ultra-low no-load power consumption below 0.075W, and conforms to energy standards such as EISA 2007/DoE and NRCan. Housed in a fully enclosed flame-retardant plastic case, it offers protections including short circuit, overload, and overvoltage, making it suitable for consumer electronics, telecommunication, office, and industrial equipment. It operates across a wide temperature range from -30°C to +70°C with LED power indicator and 3-year warranty.
MEAN WELL GST36U05P1J Industrial Power Adapter Specifications:
- Output Power: 36W
- Input Voltage Range: 85-264VAC
- Output Voltages: 5V, 12V, 24V, 48V
- Rated Currents: 4.3A (5V), 3.4A (12V), 1.5A (24V), 0.75A (48V)
- Ripple & Noise: 90-200mVp-p
- Voltage Tolerance: ±2-5%
- Line Regulation: ≤1.0%
- Load Regulation: 2-5%
- Efficiency: up to 90%
- No Load Power Consumption: < 0.075W
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 20-90% RH non-condensing
- Protection: Short circuit, Overload, Over voltage
- Dimensions: 79 mm x 54 mm x 33 mm
- Safety Standards: UL60950-1, CSA, BSMI CNS14336, EAC, compliance
- Housing: Fully enclosed flame-retardant plastic case
- Certifications: UL, CSA, CB, TUV, CE, RoHS, Energy Verified Level VI
- Warranty: 3 years
Buy the Buy MW High Reliability Industrial Adapter Part Number GST36U Series Online
Purchase the MW GST36U series industrial power adapter online today and benefit from reliable operation across wide temperature ranges, high efficiency up to 90%, low standby power below 0.075W, and full safety certifications. Ideal for consumer electronics, telecommunication, office, and industrial equipment, this adapter provides stable power with protections like short circuit, overload, and overvoltage. Its flame-retardant plastic case and 3-year warranty ensure durability and safety, making it the preferred choice for professional and industrial applications.
Buy MW GST36U series industrial power adapter now and experience exceptional efficiency, low power consumption, and comprehensive protections for your equipment.
Frequently Asked Questions
Where can I buy MEAN WELL GST36U05P1J?
You can click on the BUY or RFQ button to purchase GST36U05P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST36U05P1J?
You can download the GST36U05P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST36U05P1J?
MEAN WELL
