MEAN WELL HBG16024 LED Driver
The HBG-160 series is a 160W AC/DC LED driver designed for indoor and outdoor LED lighting applications. It features constant voltage and constant current modes with output voltage options from 24V to 60V. With high efficiency up to 93.5%, fanless cooling, and IP67/IP65 ratings, it ensures reliable performance in various environments. It supports multiple dimming functions, including 3-in-1 dimming and DALI control, with a lifetime exceeding 50,000 hours, making it ideal for versatile LED lighting systems in hazardous or outdoor settings.
MEAN WELL HBG16024 LED Driver Specifications:
- Input Voltage: 90~305VAC, 127~431VDC
- Rated Power: 156W to 158.4W depending on model
- Output Voltage: 24V, 36V, 48V, 60V
- Rated Current: 6.54A, 4.48A, 3.38A, 2.64A respectively
- Ripple & Noise: Max 300mVp-p
- Efficiency: Up to 93.5%
- Power Factor: >0.98 at full load
- Protection: Over current, short circuit, over temperature, and voltage shut down with auto-recovery
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP67/IP65
- Dimensions: 151.68mm x 66.5mm
- Lifetime: >50,000 hours at Tcase ≤ 70°C
- Certifications: UL, CSA, TUV EN61347-2-13, CE, and others
- Dimming: 3 in 1 dimming (1-10V, PWM, resistance), DALI, with adjustable output levels

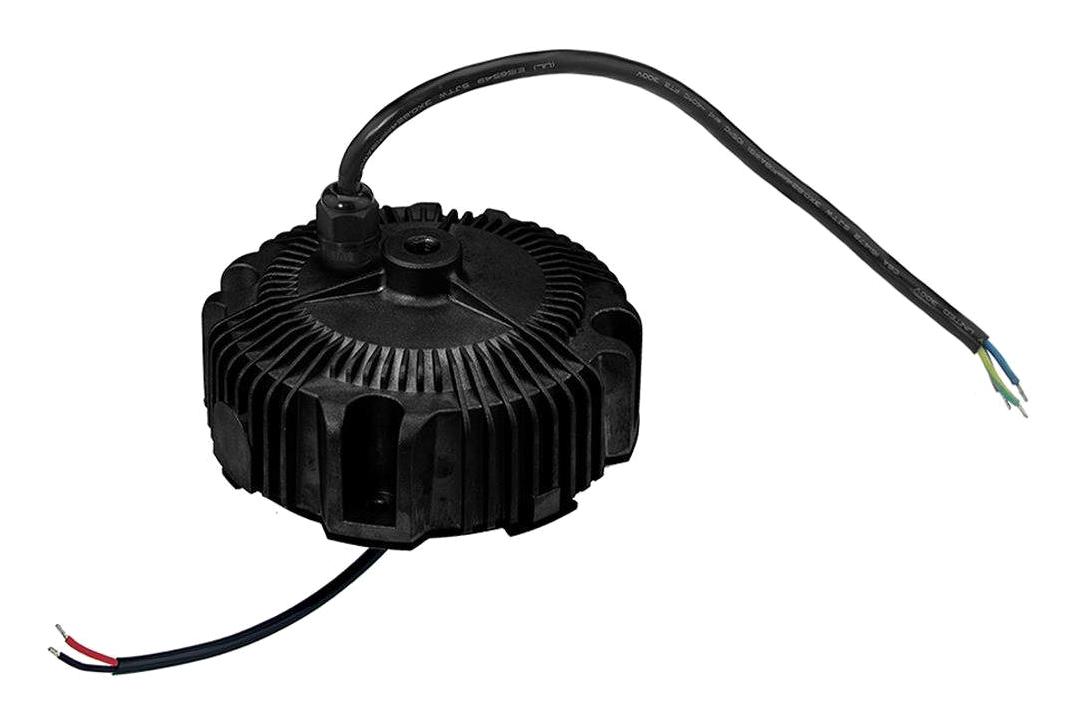

Buy the Mean Well Series HBG 160W LED Driver: HBG-160-36
Purchase the Mean Well HBG-160 series LED driver online today and enhance your lighting system with their high efficiency, versatile dimming options, and robust IP67/IP65 ratings. Perfect for indoor or outdoor applications, these drivers operate reliably across a wide temperature range and come with a 5-year warranty. Designed to fit various LED lighting setups, they support multiple dimming methods including DALI and 3-in-1 dimming, ensuring flexible control for optimal performance and energy savings. Shop now for fast, secure delivery and improve your installation’s durability and efficiency.
Buy Mean Well HBG-160-36 LED driver now and experience unmatched reliability for high power LED lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL HBG16024?
You can click on the BUY or RFQ button to purchase HBG16024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HBG16024?
You can download the HBG16024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HBG16024?
MEAN WELL
