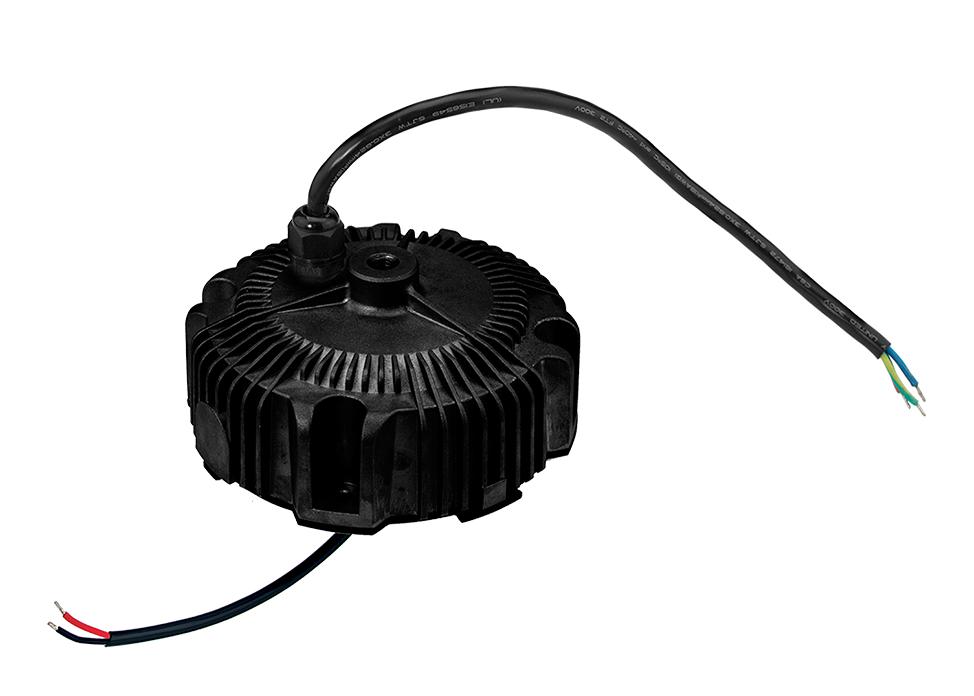

MEAN WELL HBG16060 LED Driver
HBG-160 series is a high-efficiency 160W LED driver designed for versatile indoor and outdoor LED lighting applications. It features both constant voltage and constant current outputs, operating from 90 to 305VAC with a power factor exceeding 0.98. With an IP67/IP65 rating for water and dust resistance, it supports various dimming methods including 1-10V, PWM, and resistance control, offering flexibility for different LED systems. Its robust metal housing ensures thermal management and durability, supporting up to 93.5% efficiency and a lifespan over 50,000 hours, making it ideal for stage, bay, and architectural lighting.
MEAN WELL HBG16060 LED Driver Specifications:
- Input Voltage: 90~305VAC, 127~431VDC
- Rated Power: 156W to 158.4W depending on model
- Output Voltage: 24V, 36V, 48V, 60V with adjustable current
- Rated Current: 2.6A to 6.54A depending on model
- Efficiency: up to 93.5%
- Ripple & Noise: 200-300mVp-p
- Protection: Over current, short circuit, over temperature with auto recovery
- Working Temperature: -40°C to +85°C
- Ingress Protection: IP67/IP65
- Dimming: 1-10V, PWM, resistance, DALI (optional)
- Dimensions: Ø151.68mm * 66.5mm
- Lifetime: >50,000 hours
- Certifications: UL, CE, CB, TUV, ENEC
- MTBF: 783,100 hours
Buy the MEAN WELL Series HBG 160 LED Driver: HBG-16060
Purchase the MEAN WELL HBG series 160W LED driver online today and experience high-efficiency operation, robust water and dust resistance, and flexible dimming options. Designed for indoor and outdoor LED lighting systems, it supports multiple configurations including constant voltage and constant current modes. Featuring a durable metal housing, auto-recovery protections, and a lifespan exceeding 50,000 hours, this driver ensures reliable performance for stage, bay, and architectural lighting projects. Shop now for dependable, long-lasting LED power solutions.
Get MEAN WELL HBG-16060 today—built for high efficiency, versatile dimming, and reliable outdoor LED lighting solutions.
