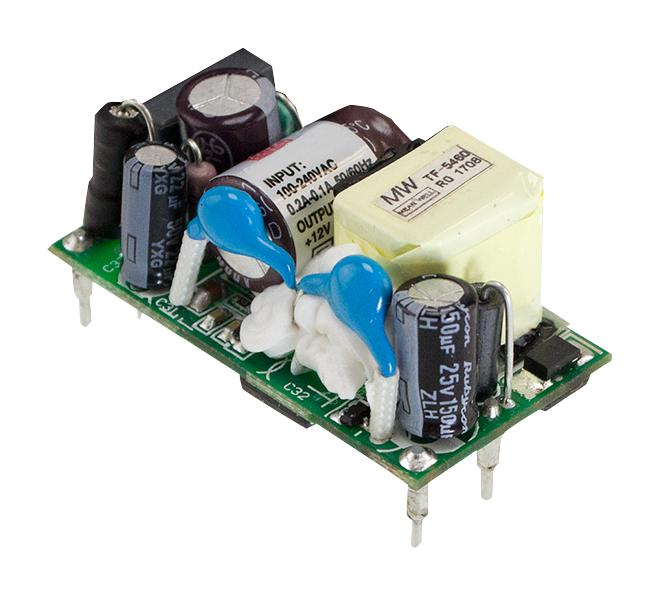

MEAN WELL MFM1024 Medical Power Supply
The MFM-10 series is a compact, high-efficiency 10W medical-grade power supply designed for portable and clinical devices. Featuring excellent electrical performance, low no-load power consumption under 0.075W, and a wide input voltage range of 80–264VAC, it supports BF applications with 2x MOPP safety isolation, ensuring patient safety. Its robust design withstands harsh environments with -30°C to +85°C operating temperature, EMI Class B compliance, and protections against short circuit, overload, overvoltage, and overheating. Ideal for medical monitors, portable devices, and examination instruments, it guarantees reliable, safe power for critical healthcare equipment.
MEAN WELL MFM1024 Medical Power Supply Specifications:
- Power Output: 10W
- Input Voltage: 80–264VAC, 47–440Hz
- Output Voltage Options: 3.3V, 5V, 12V, 16V, 24V
- Rated Currents: 2.5A at 3.3V, 2A at 5V, 0.85A at 12V, 0.67A at 16V, 0.428A at 24V
- Peak Currents: Up to 2.75A at 3.3V, 2.28A at 5V, 0.944A at 12V, 0.748A at 16V, 0.464A at 24V
- Efficiency: Up to 84%
- No Load Power Consumption: <0.075W
- Isolation Level: 2xMOPP, 4KVAC
- Operating Temperature Range: -30°C to +85°C
- Dimensions: 42mm x 22.3mm x 20.5mm
- Certification: IEC60601-1, ANSI/AAMI ES60601-1, UL, CSA
- Leakage Current: <80μA
- Features: Protections for short circuit, overload, overvoltage, over temperature, EMI Class B, high EMC compliance
- Vibration Resistance: 5G (10–500Hz)
- MTBF: 1756.2 hours
Buy the Mean Well Series MFM 10W Medical Power Supply: MFM1024
Purchase the high-quality MFM series 10W medical power supply online today to ensure your medical devices operate safely and efficiently. Featuring IEC60601-1 safety certification, low-no-load power consumption, and robust protections, this product guarantees reliable power delivery even in demanding environments. Its compact size and wide input voltage make it ideal for portable medical equipment, monitors, and examination instruments. Enjoy fast delivery, superior quality, and peace of mind when you buy your healthcare power supply online now.
Order your Mean Well Series MFM 10W medical power supply today and ensure safe, reliable power for your critical healthcare devices.
