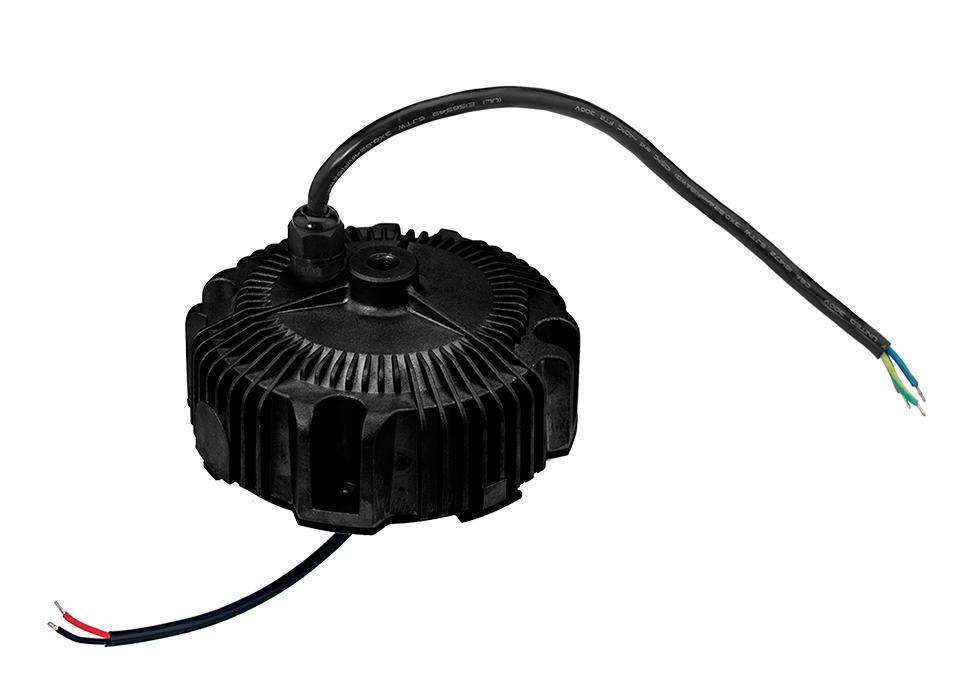

MEAN WELL HBG20036 LED Driver
The HBG-200 series is a high-efficiency 200W LED driver suitable for indoor and outdoor lighting applications, including high/low bay, canopy, architectural, stage, and floodlighting. Built with a patented circular metal housing and IP67/IP65 ratings, it supports constant voltage and constant current modes, operating from 90~305VAC with a rated power of approximately 200W. With options for dimming, adjustable output via potentiometer, and a lifetime exceeding 50,000 hours, it offers reliable performance in temperatures from -40°C to +85°C and features active PFC, high efficiency up to 93.5%, and multiple safety standards compliance.
MEAN WELL HBG20036 LED Driver Specifications:
- Rated Power: 198W
- Input Voltage: 90~305VAC
- Output Voltage: 36V, 48V, 60V (adjustable within specified ranges)
- Rated Current: 55A at 36V, 4.18A at 48V, 3.3A at 60V
- Ripple & Noise: Max 250mVp-p (36V & 48V), Max 350mVp-p (60V)
- Efficiency: Up to 93.5%
- Operating Temperature: -40°C to +85°C
- Ingress Protection Level: IP67/IP65
- Lifetime: >50,000 hours
- Certifications: UL, CSA, ENEC, IP67/IP65, DALI standards
- Protection: Over current, short circuit, over temperature, auto recovery
- Dimming: 3-in-1 (0-10V, PWM, resistance), optional options available
- Dimensions: Refer to mechanical specifications, approx 151.68mm length
- Weight: Approximately 1.59kg
Buy the MEAN WELL Series HBG 200W LED Driver: HBG20036
Enhance your lighting projects with the MEAN WELL Series HBG-200 200W LED driver, offering high efficiency, multiple dimming methods, and IP67/IP65 ratings for indoor and outdoor use. Designed for versatility, it supports constant voltage and constant current modes, operates reliably from -40°C to +85°C, and ensures a lifetime surpassing 50,000 hours. Easy to install and compliant with safety standards, this driver provides flexible configuration options, making it an ideal choice for high bay, canopy, architectural, and floodlighting applications. Purchase online today for guaranteed quality and performance.
Order your MEAN WELL Series HBG 200W LED Driver today and give your projects the dependable quality they deserve, with reliable dimming and robust ingress protection.
Frequently Asked Questions
Where can I buy MEAN WELL HBG20036?
You can click on the BUY or RFQ button to purchase HBG20036 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HBG20036?
You can download the HBG20036 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HBG20036?
MEAN WELL
